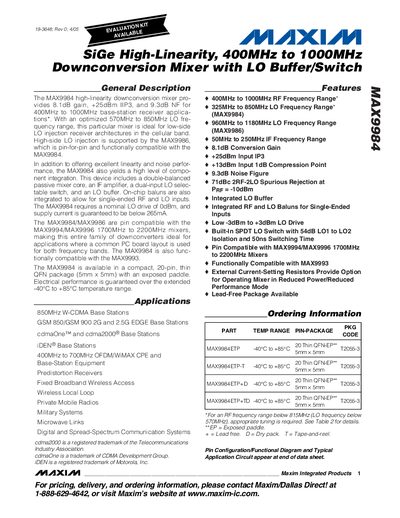

The MAX9984 high-linearity downconversion mixer provides 8.1dB gain, +25dBm IIP3, and 9.3dB NF for 400MHz to 1000MHz base-station receiver applications. With an optimized 570MHz to 850MHz LO frequency range, this particular mixer is ideal for low-side LO injection receiver architectures in the cellular band. High-side LO injection is supported by the MAX9986, which is pin-for-pin and functionally compatible with the MAX9984. In addition to offering excellent linearity and noise performance, the MAX9984 also yields a high level of component integration. This device includes a double-balanced passive mixer core, an IF amplifier, a dual-input LO selectable switch, and an LO buffer. On-chip baluns are also integrated to allow for single-ended RF and LO inputs. The MAX9984 requires a nominal LO drive of 0dBm, and supply current is guaranteed to be below 265mA. The MAX9984/MAX9986 are pin compatible with the MAX9994/MAX9996 1700MHz to 2200MHz mixers, making this entire family of downconverters ideal for applications where a common PC board layout is used for both frequency bands. The MAX9984 is also functionally compatible with the MAX9993. The MAX9984 is available in a compact, 20-pin, thin QFN package (5mm x 5mm) with an exposed paddle. Electrical performance is guaranteed over the extended -40°C to +85°C temperature range.
The MAX9984 provides 8.1 dB conversion gain, +25 dBm IIP3, and 9.3 dB noise figure across a 400 MHz‑to‑1000 MHz RF range. It integrates a double‑balanced passive mixer core, IF amplifier, dual‑input LO selectable switch, LO buffer, and on‑chip baluns for single‑ended RF and LO inputs. The device operates from a 5 V supply with a nominal LO drive of 0 dBm and a supply current below 265 mA.
Typical applications include 850 MHz W‑CDMA, GSM, cdmaOne, iDEN, OFDM/WiMAX, predistortion receivers, fixed broadband wireless access, wireless local loop, and military microwave links. The part is pin‑compatible with MAX9994/MAX9996 mixers and functionally compatible with MAX9993.
