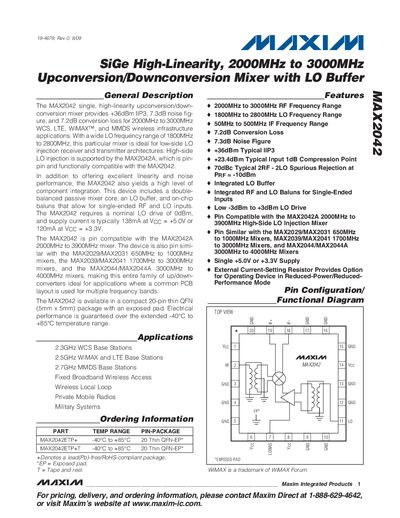

The MAX2042 is a single, high-linearity upconversion/down-conversion mixer that provides +36dBm IIP3, 7.3dB noise figure, and 7.2dB conversion loss for 2000MHz to 3000MHz WCS, LTE, WiMAXK, and MMDS wireless infrastructure applications.
The MAX2042 is a single‑chip, high‑linearity up‑conversion/down‑conversion mixer designed for wireless infrastructure applications such as WCS, LTE, WiMAX, and MMDS. It features a double‑balanced passive mixer core, an integrated LO buffer, on‑chip baluns, and supports both low‑side and high‑side LO injection.
The device is offered in a 20‑pin thin QFN‑EP package (5 mm × 5 mm) with an exposed pad, operates over –40 °C to +85 °C, and provides detailed electrical specifications including conversion loss, noise figure, IIP3, and supply requirements.
| RF Frequency Range | 2000 MHz – 3000 MHz |
|---|---|
| LO Frequency Range | 1800 MHz – 2800 MHz |
| IF Frequency Range | 50 MHz – 500 MHz |
| Conversion Loss (typical) | 7.2 dB |
| Noise Figure (typical) | 7.3 dB |
| IIP3 (typical) | +36 dBm |
| Supply Current (typical, 5 V) | 138 mA |
| Supply Current (typical, 3.3 V) | 120 mA |
The typical supply current at a 5 V supply is 138 mA.
It is available in a 20‑pin thin QFN‑EP (5 mm × 5 mm) package with an exposed pad.
The typical conversion loss is 7.2 dB.
