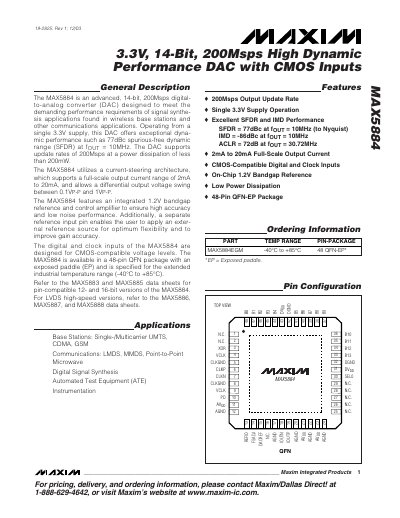

The MAX5884 is an advanced, 14-bit, 200Msps digital-to-analog converter (DAC) designed to meet the demanding performance requirements of signal synthesis applications found in wireless base stations and other communications applications.
The MAX5884 is a 14‑bit, 200 Msps digital‑to‑analog converter designed for high‑performance signal synthesis in wireless base stations and other communications applications. It operates from a single 3.3 V supply, offers a full‑scale output current of 2 mA to 20 mA, and includes an integrated 1.2 V bandgap reference.
Typical applications include base‑station transmitters, digital signal synthesis, automated test equipment, and instrumentation. The device is supplied in a 48‑pin QFN‑EP package and supports CMOS‑compatible digital and clock inputs, with optional external reference for enhanced gain accuracy.
| Resolution | 14 bits |
|---|---|
| Output Update Rate | 200 Msps |
| Supply Voltage Range | 3.135 V to 3.465 V |
| Spurious‑Free Dynamic Range (SFDR) | 77 dBc at 10 MHz |
| Operating Temperature Range | -40 °C to +85 °C |
| Package | 48‑Pin QFN‑EP |
The analog, digital, and clock supplies each accept 3.135 V to 3.465 V.
The DAC can update its output at up to 200 Msps.
The SFDR is 77 dBc at an output frequency of 10 MHz.
