Maxim MAX5885 16‑Bit 200Msps DAC Datasheet

The MAX5885 is an advanced, 16-bit, 200Msps digital-to-analog converter (DAC) designed to meet the demanding performance requirements of signal synthesis applications found in wireless base stations and other communications applications. Operating from a single 3.3V supply, this DAC offers exceptional dynamic performance such as 77dBc spurious-free dynamic range (SFDR) at fOUT = 10MHz. The DAC supports update rates of 200Msps at a power dissipation of less than 200mW. The MAX5885 utilizes a current-steering architecture, which supports a full-scale output current range of 2mA to 20mA, and allows a differential output voltage swing between 0.1VP-P and 1VP-P. The MAX5885 features an integrated 1.2V bandgap reference and control amplifier to ensure high accuracy and low noise performance. Additionally, a separate reference input pin enables the user to apply an external reference source for optimum flexibility and to improve gain accuracy. The digital and clock inputs of the MAX5885 are designed for CMOS-compatible voltage levels. The MAX5885 is available in a 48-pin QFN package with an exposed paddle (EP) and is specified for the extended industrial temperature range (-40°C to +85°C). Refer to the MAX5883 and MAX5884 data sheets for pin-compatible 12- and 14-bit versions of the MAX5885. For LVDS high-speed versions, refer to the MAX5886/MAX5887/MAX5888 data sheet.

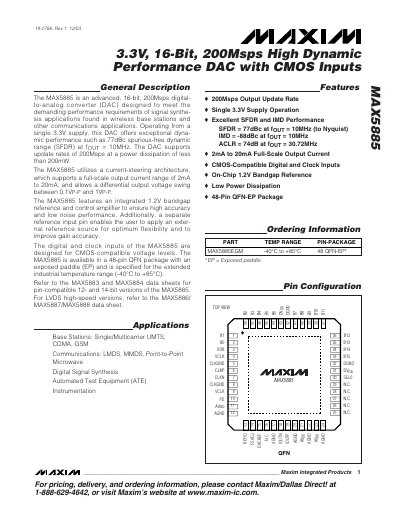

Maxim MAX5885 16‑Bit 200Msps DAC Datasheet - cover page
Brand
Maxim
Category
Other Electronics
Document type
Datasheet
Language
English
Pages
18
File format
PDF
File size
862 KB
Published
07 May, 2012
Updated
29 September, 2023
MD5 checksum
7C986E328C135BFAD05F1236C69947F1

About this manual

The MAX5885 is a high‑performance 16‑bit digital‑to‑analog converter designed for signal‑synthesis applications such as wireless base stations. It operates from a single 3.3 V supply and provides a differential output voltage swing of 0.1 V to 1 V P‑P.

Key features include a 200 Msps update rate, 2‑20 mA full‑scale output current, spurious‑free dynamic range of up to 77 dBc at 10 MHz, and a 48‑pin QFN‑EP package suitable for extended‑temperature operation. The datasheet provides detailed electrical characteristics, pin descriptions, timing diagrams, and recommended layout guidelines.

What's inside

  • General Description
  • Electrical Characteristics
  • Pin Description
  • Block Diagram
  • Timing Characteristics
  • Power Supply Recommendations
  • Performance Graphs
  • Reference Architecture
  • Segment Shuffling
  • XOR Function

Specifications

Resolution16 bits
Integral Nonlinearity (INL)±0.006 % FS
Differential Nonlinearity (DNL)±0.003 % FS
Supply Voltage Range (AVDD/DVDD/VCLK)3.135 V – 3.465 V
Output Voltage Swing (differential)0.1 V – 1 V P‑P
Output Update Rate200 Msps
Spurious‑Free Dynamic Range (10 MHz)77 dBc

Frequently asked questions

What is the maximum output update rate of the MAX5885?

The MAX5885 supports an output update rate of up to 200 Msps.

What supply voltage range does the MAX5885 require?

It operates from a single 3.3 V supply with an acceptable range of 3.135 V to 3.465 V for analog, digital, and clock supplies.

What spurious‑free dynamic range does the MAX5885 achieve at 10 MHz?

It achieves a spurious‑free dynamic range of 77 dBc at a 10 MHz output frequency.
