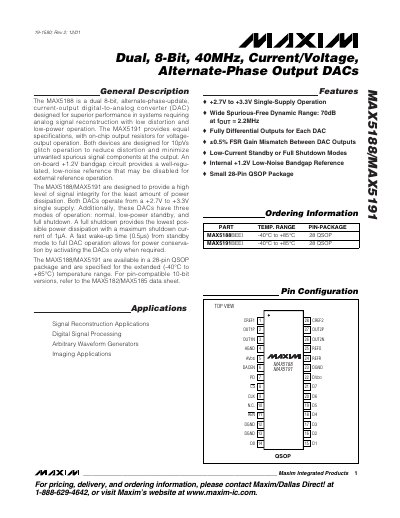

The MAX5188/MAX5191 is a dual 8-bit, alternate-phase-update, current-output digital-to-analog converter (DAC) designed for superior performance in systems requiring analog signal reconstruction with low distortion and low-power operation.
The MAX5188 and MAX5191 are dual‑channel 8‑bit digital‑to‑analog converters capable of up to 40 MHz clock rates. They provide current‑output (MAX5188) or voltage‑output (MAX5191) operation with an integrated +1.2 V low‑noise bandgap reference that can be disabled for external references.
Both devices operate from a single 2.7 V to 3.3 V supply, feature low‑power standby and shutdown modes (1 µA shutdown current), and are supplied in a 28‑pin QSOP package rated for –40 °C to +85 °C. The datasheet includes electrical characteristics, pin descriptions, timing diagrams, and recommended PCB layout guidelines.
| Supply Voltage (AVDD) | 2.7 V to 3.3 V |
|---|---|
| Supply Voltage (DVDD) | 2.7 V to 3.3 V |
| Package | 28‑pin QSOP |
| Operating Temperature Range | -40 °C to +85 °C |
| Resolution | 8 bit |
| Maximum Full‑Scale Output Current (MAX5188) | 1.5 mA |
| Shutdown Current | 1 µA |
| Wake‑up Time from Standby | 0.5 µs |
| Clock Frequency | up to 40 MHz |
The devices have a maximum shutdown current of 1 µA.
The wake‑up time from standby to full operation is about 0.5 µs.
