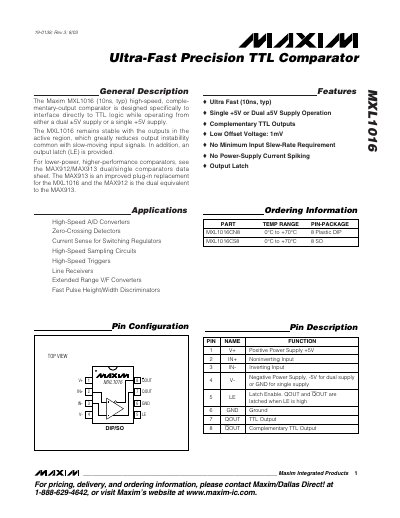

The Maxim MXL1016 ultra‑fast precision TTL comparator is designed for direct interfacing to TTL logic. It operates from either a single +5 V supply or dual ±5 V supplies and includes complementary TTL outputs with an optional output latch.
Key features include a typical 10 ns propagation delay, low offset voltage (3.5 mV typ), and a wide operating temperature range of 0 °C to +70 °C. The device is supplied in 8‑pin DIP and SOIC packages and is suited for high‑speed A/D converters, zero‑crossing detectors, and other fast sampling applications.
| Typical response time | 10 ns |
|---|---|
| Supply voltage options | Single +5 V or dual ±5 V |
| Continuous output current | ±20 mA |
| Operating temperature range | 0 °C to +70 °C |
It can run from a single +5 V supply or from dual ±5 V supplies.
Yes, an output latch (LE) is provided.
