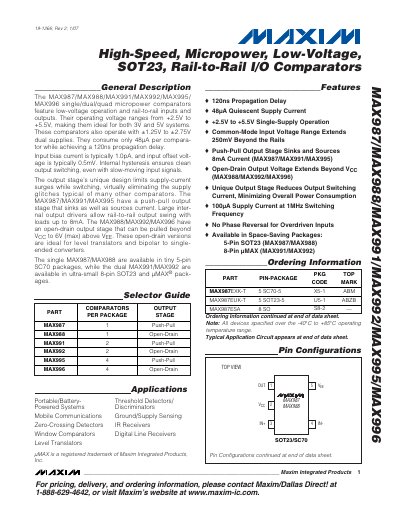

The MAX987/MAX988/MAX991/MAX992/MAX995/MAX996 are single/dual/quad micropower comparators with low-voltage operation and rail-to-rail inputs and outputs. They are ideal for both 3V and 5V systems, with an operating voltage range of +2.5V to +5.5V.
The MAX987/MAX988/MAX991/MAX992/MAX995/MAX996 family are low‑power, low‑voltage comparators that operate from +2.5 V to +5.5 V (single‑supply) or ±1.25 V to ±2.75 V (dual‑supply). They consume only 48 µA per comparator and feature a 120 ns propagation delay, internal hysteresis, and rail‑to‑rail input and output ranges.
Key features include push‑pull outputs for the MAX987/991/995 devices (8 mA source/sink capability) and open‑drain outputs for the MAX988/992/996 devices (output can be pulled up to 6 V above VEE). The devices are offered in space‑saving SC70, SOT‑23 and µMAX packages and are suited for battery‑powered, portable, and high‑speed applications such as zero‑crossing detection and logic‑level translation.
| Propagation Delay | 120 ns |
|---|---|
| Quiescent Supply Current | 48 µA per comparator |
| Operating Voltage Range | +2.5 V to +5.5 V (single‑supply) |
| Input Bias Current | Typical 1.0 pA |
| Input Offset Voltage | Typical 0.5 mV |
| Output Current (push‑pull) | Up to 8 mA load |
| Operating Temperature Range | -40 °C to +85 °C |
The typical propagation delay is 120 ns.
Each comparator draws about 48 µA of quiescent supply current.
