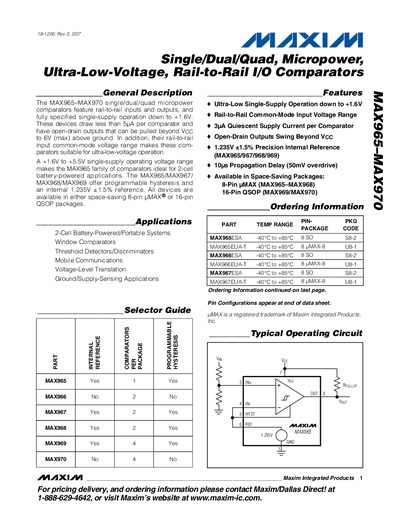

The MAX965–MAX970 single/dual/quad micropower comparators feature rail-to-rail inputs and outputs, and fully specified single-supply operation down to +1.6V. These devices draw less than 5µA per comparator and have open-drain outputs that can be pulled beyond VCC to 6V (max) above ground. In addition, their rail-to-rail input common-mode voltage range makes these comparators suitable for ultra-low-voltage operation. A +1.6V to +5.5V single-supply operating voltage range makes the MAX965 family of comparators ideal for 2-cell battery-powered applications. The MAX965/MAX967/ MAX968/MAX969 offer programmable hysteresis and an internal 1.235V ±1.5% reference. All devices are available in either space-saving 8-pin µMAX® or 16-pin QSOP packages.
The MAX965–MAX970 family are single, dual, and quad micropower comparators that operate from a single +1.6 V to +5.5 V supply. They feature rail‑to‑rail inputs and outputs, an internal 1.235 V reference, and programmable hysteresis, making them suitable for battery‑powered and low‑voltage applications.
The datasheet provides absolute maximum ratings, electrical characteristics, pin descriptions for each device variant, functional diagrams, and detailed package dimensions. Ordering information and revision history are also included.
| Supply Voltage Range | +1.6 V to +5.5 V |
|---|---|
| Quiescent Supply Current per Comparator | < 5 µA |
| Internal Reference Voltage | 1.235 V ±1.5 % |
| Propagation Delay | 10 ps (typical) |
| Input Common‑Mode Voltage Range | -0.25 V to VCC |
| Output Type | Open‑Drain (can swing beyond VCC) |
They operate from a single‑supply voltage of +1.6 V to +5.5 V.
Each comparator consumes less than 5 µA of quiescent supply current.
The internal band‑gap reference is 1.235 V with a ±1.5 % tolerance.
