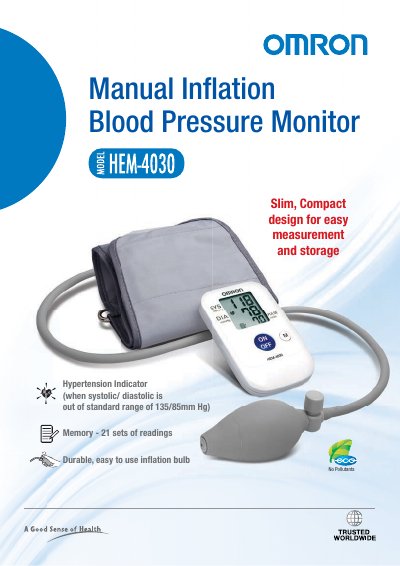

The document introduces a product called Omron HEM-4030 Manual Inflation Blood Pressure Monitor. The blood pressure monitor features a pollutant-free hypertension indicator and can measure blood pressure and pulse. It has a memory function with 21 sets of readings. The monitor uses a manual inflation bulb for inflation and has a slim and compact design for easy measurement and storage. It also includes a hypertension indicator, which blinks the heartbeat symbol when blood pressure is outside the standard range. The product is suitable for home blood pressure measurement.
The Omron HEM-4030 is a manual‑inflation blood pressure monitor that uses the oscillometric method. It features an LCD digital display, a memory for 21 sets of readings, and a hypertension indicator that blinks when systolic or diastolic pressure exceeds 135/85 mmHg. The device operates on two AAA batteries and includes a medium cuff for arm circumferences of 22‑32 cm, with optional small and large cuffs.
This manual explains how to correctly apply the cuff, operate the manual inflation bulb, interpret the display, and maintain the unit. It also lists technical specifications such as measurement range, accuracy, power source, dimensions, and storage conditions, as well as safety and cleaning instructions.
| Measurement Range | 0‑299 mmHg |
|---|---|
| Pressure Accuracy | ±3 mmHg |
| Pulse Accuracy | ±5 % of reading |
| Power Source | 2 AAA 1.5 V batteries |
| Battery Life | ≈1500 uses (twice daily) |
| Operating Temperature | 10 °C to 40 °C |
| Storage Temperature | -20 °C to 60 °C |
| Unit Dimensions | 105 × 64 × 35 mm |
| Cuff Dimensions | 146 × 446 mm (Medium cuff) |
| Weight | ≈75 g (excluding batteries) |
| Pulse Range | 40‑180 beats/min |
| Memory Capacity | 21 sets of readings |
The monitor can store up to 21 sets of blood pressure readings.
It uses two AAA 1.5 V batteries, providing approximately 1500 measurements when used twice a day.
