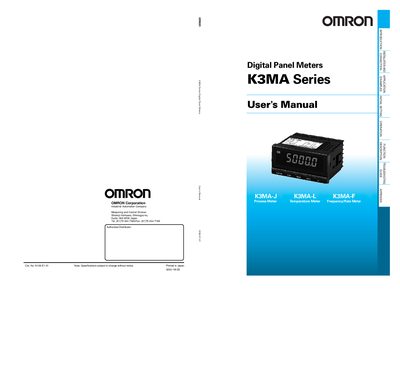

K3MA Series Digital Panel Meters User’s Manual, introduces the use of K3MA Series Digital Panel Meters, including installation, connection, application examples, initial setting, operation, function description, troubleshooting, etc.
This manual covers safety precautions, installation guidelines, and detailed operation procedures for the Omron K3MA Series digital panel meters. It includes specific information for various sub‑models such as K3MA‑J (process meter), K3MA‑L (temperature meter), and K3MA‑F (frequency/rate meter).
The document also provides application examples, initial setting steps, and troubleshooting tips to ensure reliable performance in industrial environments.
| Recommended tightening torque | 0.43-0.58 N‑m |
|---|---|
| Panel thickness for mounting | 1 to 8 mm |
The recommended tightening torque is 0.43‑0.58 N‑m.
Age the product for at least 15 minutes after power‑on; for the K3MA‑L model, age for 30 minutes.
