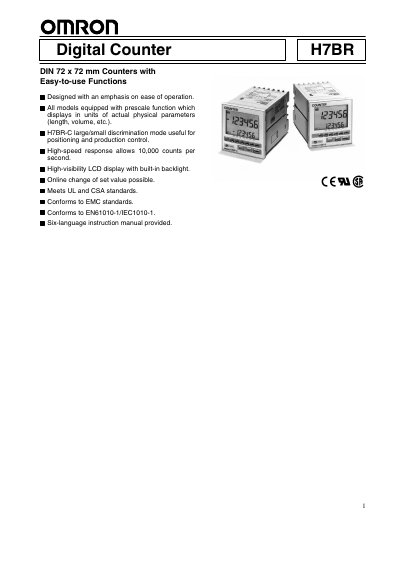

H7BR DIN 72 x 72 mm Counters with Easy-to-use Functions Designed with an emphasis on ease of operation. All models equipped with prescale function which displays in units of actual physical parameters (length, volume, etc.). H7BR-C large/small discrimination mode useful for positioning and production control. High-speed response allows 10,000 counts per second. High-visibility LCD display with built-in backlight. Online change of set value possible. Meets UL and CSA standards. Conforms to EMC standards. Conforms to EN61010-1/IEC1010-1. Six-language instruction manual provided.
The H7BR digital counter family from Omron offers DIN‑72 × 72 mm counters with high‑visibility LCD backlight, prescale functions, and up to 10,000 counts per second. Models are available in standard and range types, with selectable input (voltage, no‑voltage) and output (NPN or PNP transistor) configurations, and can be mounted flush in panels with an IP54 rating.
This manual covers ordering information, detailed specifications, ratings, wiring diagrams, block diagrams, operational modes, programming keys, and safety and warranty information. It also includes engineering data such as life expectancy of contacts, output delay tables, and factory default settings.
