The G6B is a sub-miniature PCB power relay that can switch up to 5A of current. It features low power consumption, a small footprint, low magnetic interference, and short contact bounce times. Back connecting sockets are available for separate purchase.

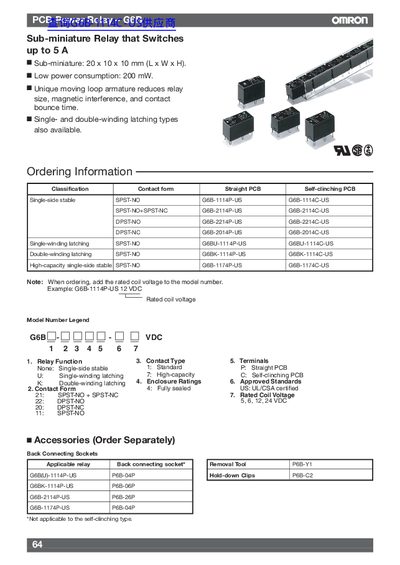

The G6B series is a sub‑miniature PCB power relay offering up to 5 A switching capacity in a compact 20 × 10 × 10 mm package. It features low power consumption (≈200 mW), a moving‑loop armature to reduce size and contact bounce, and both single‑ and double‑winding latching options.
The datasheet lists detailed electrical characteristics such as coil voltage (3 VDC‑24 VDC), coil resistance, contact ratings (5 A at 250 VAC), mechanical endurance (18 000 operations/hr), and environmental limits (‑25 °C to 70 °C). Mechanical drawings show terminal layouts, mounting hole patterns, and dimensions for each variant.
| Coil voltage range | 3 VDC to 24 VDC |
|---|---|
| Coil resistance (example) | 462 Ω |
| Coil inductance (example) | 0.20 mH |
| Power consumption | ≈200 mW |
| Contact rating (general use) | 5 A at 250 VAC |
| Maximum switching voltage | 380 VAC, 125 VDC |
| Maximum switching power | 4 250 VA / 150 W |
| Mechanical endurance | 18 000 operations per hour |
| Electrical endurance | 1 800 operations per hour (rated load) |
| Operating temperature range | -25 °C to 70 °C |
| Weight (double‑winding latching) | ≈3.7 g |
The G6B relay can be ordered with coil voltages from 3 VDC up to 24 VDC.
The relay is rated for a maximum switching current of 5 A.
It operates from –25 °C to 70 °C.
The relay is rated for up to 18 000 mechanical operations per hour.
