3S4YR-HSR is an economical, manually operated card reader with a compact, rugged design that can operate over a wide temperature range. It provides stable operation with card swipe speeds within a range of 10 to 150 cm/second. You can choose from enclosed or open housing to match your application. It supports single and double track configurations. It also has a TTL-compatible interface (clock & data).
The 3S4YR-HSR is a compact, rugged swipe magnetic card reader designed for a wide operating temperature range and stable operation at card swipe speeds of 10 to 150 cm/second. It supports single and double track configurations and offers both enclosed and open housing options for various applications such as POS systems, electronic locks, and access terminals.

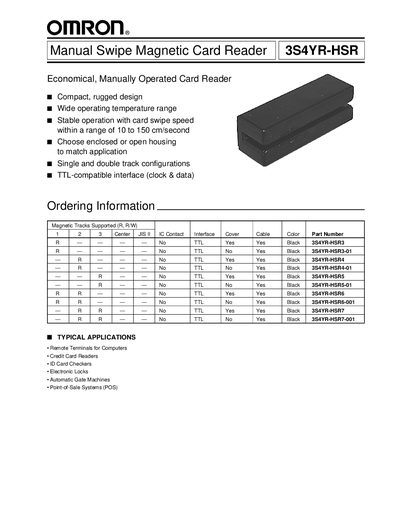

The manual includes detailed specifications, power and current requirements, connector pin‑outs, dimensions, and mounting information. Engineering data such as output signal levels and vibration/shock tolerances are also provided to aid installation and integration.
| Recommended card type | ISO 7810, 7811/1-5, 7812, 7813 |
|---|---|
| Card feeding speed | 10 to 150 cm/sec (4 to 59 in/sec) |
| Service life (single track) | 300,000 passes min. |
| Operating power supply | 5 VDC + 10% |
| Current consumption (single track) | 25 mA |
| Ambient temperature (operation) | -10° to 55°C (14° to 131°F) |
| Dimensions with cover | 100 L × 32.5 W × 32 H mm |
| Weight (enclosed) | ≈90 g (3.20 oz) |
The reader operates with a card feeding speed of 10 to 150 cm per second (4 to 59 in/sec).
It requires a 5 VDC supply with a tolerance of plus or minus 10 %.
The covered unit measures 100 mm length, 32.5 mm width and 32 mm height.
