The C6097A,B Pressure Switches are safety devices used in positive-pressure or differential-pressure systems to sense gas or air pressure changes.

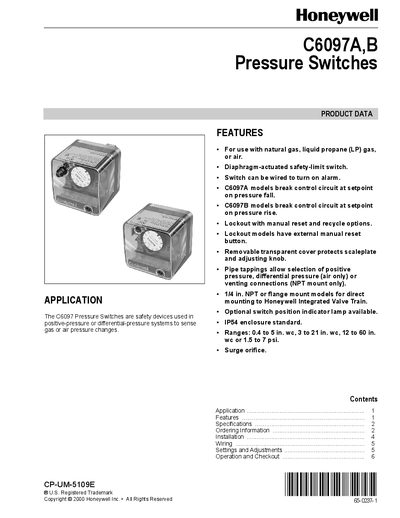

This manual describes the Honeywell C6097A/B pressure switches, safety‑limit devices for natural gas, liquid propane, and air applications. It covers product features, model selection, ratings, and approved accessories.
Detailed sections guide installers through mounting, wiring, setting the pressure setpoint, operation, and checkout procedures, while emphasizing safety warnings for explosion, fire, and electrical shock hazards.
| Minimum Ambient Temperature | -40°F (-40°C) |
|---|---|
| Maximum Ambient Temperature | 140°F (60°C) |
| Scale Range (low) | 0.4 to 5 in. we (0.10 kPa to 1.25 kPa) |
| Scale Range (high) | 1.5 to 7 psi (10.3 kPa to 48 kPa) |
| Inductive Full Load Rating | 3.0 A |
| Locked Rotor Rating | 18.0 A |
| Resistive Rating | 5.0 A |
The switches are approved for natural gas, liquid propane (LP) gas, and air.
After normal pressure is restored, push the reset button in as far as it goes, then release.
Models may have a 1/4‑18 NPT main/high‑pressure connection, a 1/8‑27 NPT vent/low‑pressure connection (air only), or a flange mount for direct valve attachment.
