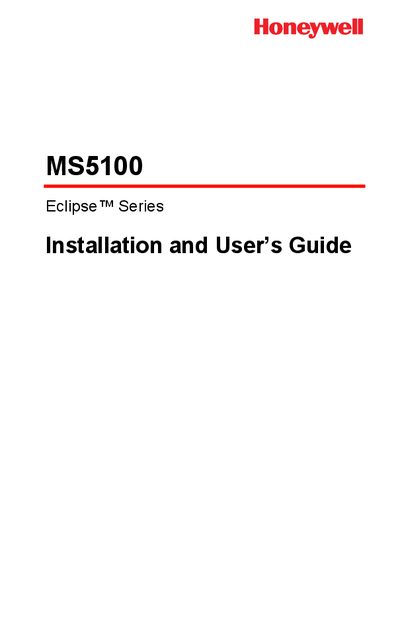

This document is the installation and user guide for the MS5100 Eclipse™ series, providing specifications and other information about the product.
The Honeywell MS5100 Eclipse series is a single‑line, hand‑held laser scanner designed for point‑of‑sale, menu scanning, document processing and inventory control. The guide provides product overview, kit components, optional accessories, and detailed installation steps for various interfaces such as RS232, USB, and keyboard emulation.
Maintenance instructions cover cleaning the scanner window with a mild, ammonia‑free glass cleaner and proper cable handling. The document also includes troubleshooting tips, design specifications, and firmware upgrade procedures.
| Interface (Model MS5145) | 00 Laser Emulation |
|---|---|
| Interface (Model MS5145) | 14 RS232 (TXD, RXD, RTS, CTS, DTR, DSR) |
| Interface (Model MS5145) | 38 Keyboard Emulation or Serial Emulation |
| Interface (Model MS5145) | 40 Full Speed USB |
| Power Supply (Optional Accessory) | 5.2 VDC @ 1 A output |
The default setting is Keyboard Emulation Mode.
An AC‑to‑DC power transformer providing a regulated 5.2 VDC at 1 A is included as an optional accessory.
