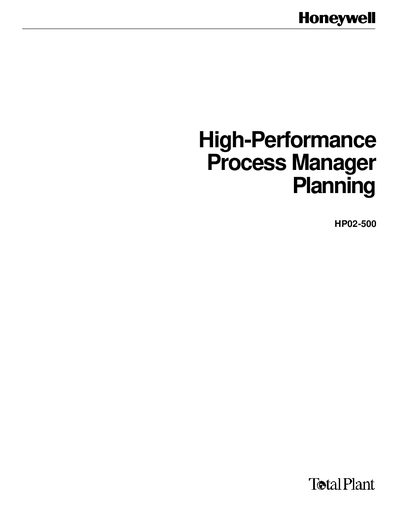

Honeywell HP02-500 Planning Manual

About this manual

This manual offers detailed information for planning the installation of a High‑Performance Process Manager (HPM) subsystem at a TotalPlant Solution (TPS) system site. It covers system site planning, network interface modules, and the necessary steps to integrate the HPM with the Universal Control Network.

The document includes sections on power draw calculations, process wiring, hazardous environment considerations, CE compliance, cabinet configurations for various models, and redundancy planning. It is intended for experienced planners familiar with TPS system equipment and provides references to related planning and installation manuals.

What's inside

• Introduction
• HPM Description
• Power Draw Calculations
• Process Wiring
• Hazardous Environment Planning
• Corrosion Protection Planning
• CE Compliance
• Model MU-CBSM01/MU-CBDM01 Cabinets
• Model MU-CBSX01/MU-CBDX01 Cabinets
• Redundancy Planning

Frequently asked questions

What does the HP02-500 Planning Manual cover?

It provides information necessary to properly plan the installation of a High‑Performance Process Manager subsystem at a TPS system site.

Which software releases does the manual support?

The publication supports TotalPlant Solution (TPS) system network software Release 530 or earlier.

Is the equipment CE compliant?

Yes, the manual states that it supports CE Compliant equipment, meeting EU EMC and safety directives.
