This manual provides installation and configuration instructions for the Galaxy Dimension, including system architecture, connection methods, battery installation, line monitoring, etc.

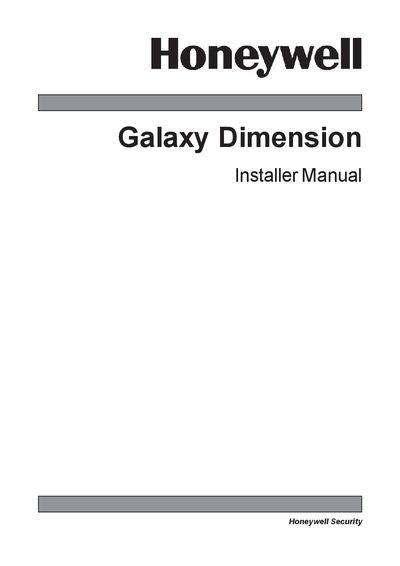

The Honeywell Galaxy Dimension Installation Manual provides step‑by‑step instructions for installing, wiring, and configuring the Galaxy Dimension control panel and its associated peripherals such as keypads, RIO modules, and communication interfaces. It covers quick‑setup procedures, system architecture, power requirements, and detailed wiring diagrams.
The document also includes specifications, compliance information, and a parts list for the four variants (GD‑48, GD‑96, GD‑264, GD‑520). Appendices contain event code tables, storage mode instructions, and a declaration of conformity. This manual is written in Chinese.
| RIO weight | 270 g (approx.) |
|---|---|
| RIO dimensions | 150 mm W × 162 mm H × 39 mm D |
| Operating voltage range | 10.5 V to 15 V |
| Typical current draw | 40 mA |
| Maximum current draw (2 readers) | 130 mA |
| Panel weight | 6.4 kg |
| Operating temperature range | -10 °C to +55 °C |
| Power supply capacity (GD‑48) | 1.5 A total (0.75 A battery) |
| Power supply capacity (GD‑96/264/520) | 3 A total (1.5 A battery) |
| Auxiliary +12 V output (GD‑48) | 0.5 A total, 50 mV ripple |
The Galaxy Dimension is offered in four variants: GD‑48, GD‑96, GD‑264, and GD‑520.
The system operates from 10.5 V to 15 V.
Typical current draw is 40 mA.
