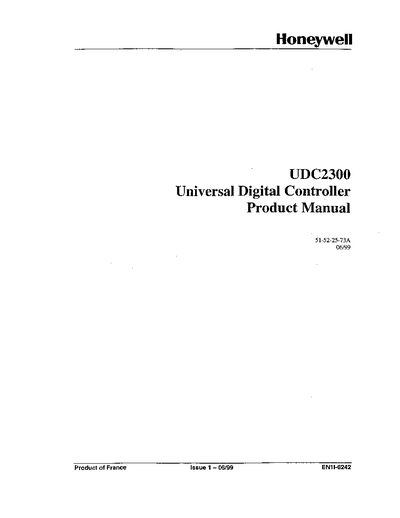

This manual covers the complete lifecycle of the UDC2300 controller, including installation steps, wiring diagrams, and preliminary checks. It explains how to power up the controller, use the operator interface, and configure system parameters such as timers, tuning groups, and alarm settings.
Additional sections describe monitoring functions, set‑point programming, input and output calibration, parts lists, and a detailed function‑parameter reference guide. Technical support contact information and warranty details are also provided.
| Warranty period | Two years |
|---|
The controller carries a two‑year warranty.
It warns of a risk of electric shock where voltages greater than 30 Vrms, 42.4 Vpeak, or 60 Vdc may be accessible.
