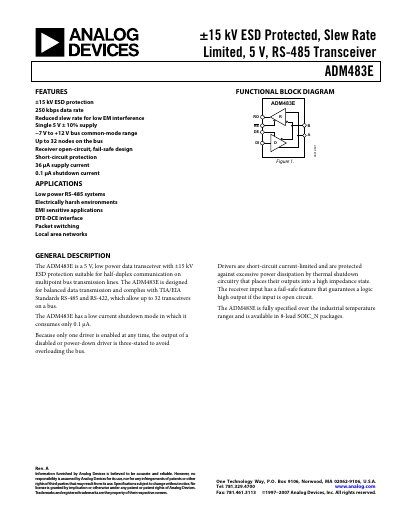

This datasheet introduces the features of the ADM483E data transceiver, including ESD protection, data rate, supply voltage, common voltage range, node count, supply current, shutdown current, application scenarios, etc.
The ADM483E is a 5 V, low‑power data transceiver designed for half‑duplex RS‑485/RS‑422 communication on multipoint bus systems. It offers ±15 kV ESD protection, a shutdown current of only 0.1 µA, and fail‑safe receiver operation, making it suitable for electrically harsh environments.
Typical applications include low‑power RS‑485 networks, DTE‑DCE interfaces, and industrial LANs where up to 32 transceivers share a common bus. The device is supplied in an 8‑lead SOIC package and operates over an industrial temperature range of –40 °C to +85 °C.
| Supply Voltage (VCC) | 5 V ±10 % |
|---|---|
| Supply Current (ICc) – enabled | 36 µA |
| Shutdown Current | 0.1 µA |
| Driver Short‑Circuit Current | 250 mA |
| ESD Protection Rating | ±15 kV (HBM) |
| Maximum Nodes on Bus | 32 |
The device provides ±15 kV ESD protection under the Human Body Model (HBM).
The ADM483E supports up to 32 transceivers on a single bus.
In shutdown mode the device draws only 0.1 µA.
The industrial version operates from –40 °C to +85 °C.
