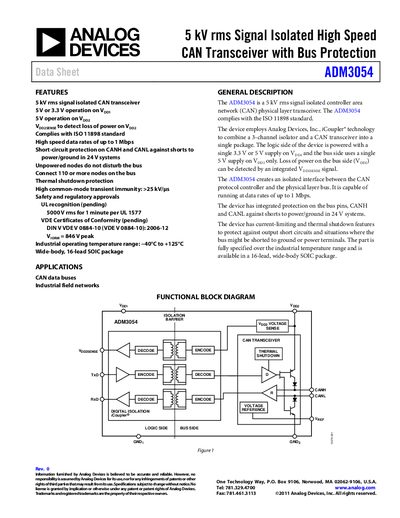

The ADM3054 is a 5 kV rms signal isolated high speed CAN transceiver supporting 5 V or 3.3 V operation, with a maximum data rate of up to 1 Mbps.
The ADM3054 is a 5 kV rms signal‑isolated CAN transceiver that complies with ISO 11898. It operates from a 3.3 V or 5 V logic supply and a 5 V bus supply, providing short‑circuit, thermal‑shutdown and high‑common‑mode transient immunity.
The device is offered in a 16‑lead wide‑body SOIC package, supports up to 110 nodes on a CAN bus, and meets UL and VDE safety approvals (pending). Detailed electrical specifications, timing parameters and pin functions are provided for designers.
| Maximum Data Rate | 1 Mbps |
|---|---|
| Operating Temperature Range | ‑40 °C to +125 °C |
| Rated Dielectric Insulation Voltage | 5000 Vrms (1‑minute) |
| Supply Voltage (Logic Side) | 3.3 V or 5 V |
The ADM3054 can connect up to 110 nodes on the bus.
It is rated for 5000 Vrms isolation for a 1‑minute duration.
It supports data rates up to 1 Mbps.
