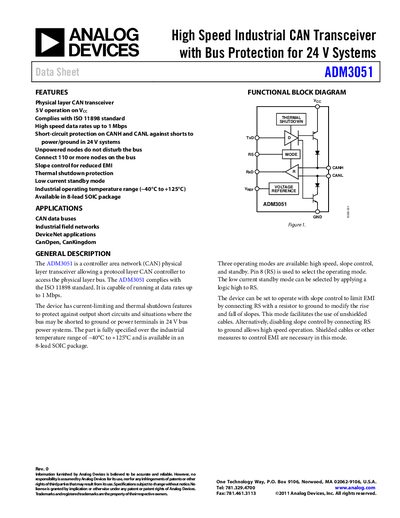

The ADM3051 is a high-speed industrial CAN transceiver that provides 1 Mbps data rates over 24 V systems. It features short-circuit protection, power management, and low power operation for industrial control applications.
The ADM3051 is a physical‑layer CAN transceiver designed for 24 V industrial bus systems. It complies with ISO 11898, supports data rates up to 1 Mbps, and offers short‑circuit protection on CANH and CANL as well as thermal shutdown. The device can operate in high‑speed, slope‑control, or low‑current standby modes, with the mode selected via pin 8 (RS).\n\nTypical applications include CAN data buses, industrial field networks, DeviceNet, and higher‑level protocols such as CANopen. The part is supplied in an 8‑lead SOIC package and is rated for an industrial temperature range of –40 °C to +125 °C.
| Supply voltage (Vcc) | 4.5 V – 5.5 V |
|---|---|
| Operating temperature range | ‑40 °C to +125 °C |
| Maximum data rate | 1 Mbps |
| Standby current | 275 pA |
| Dominant‑state driver current | 78 mA |
| Recessive‑state driver current | 10 mA |
| Package | 8‑lead SOIC (R‑8) |
The ADM3051 supports a maximum data rate of 1 Mbps.
It operates from –40 °C up to +125 °C.
Standby mode is selected by applying a logic high to pin 8 (RS).
Yes, it includes short‑circuit protection on CANH and CANL for 24 V bus systems.
