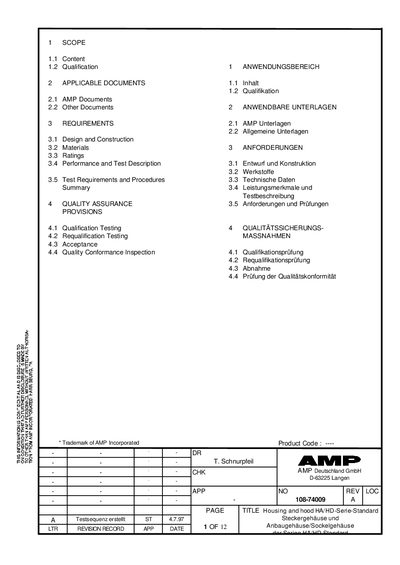

This specification covers the performance, tests and quality requirements of standard housings and hoods for the product group „heavy duty connectors“.
This document defines the performance, test and quality requirements for the standard housings and hoods of the HA and HD series. It outlines the applicable standards, design and construction criteria, material references and the ratings that the products must meet.
The specification also details the test sequence for qualification and re‑qualification, including visual inspection, IP protection tests, mechanical endurance, temperature cycling, vibration, shock and environmental exposure. All tests follow the referenced IEC and DIN standards. This manual is written in German.
| Operating Temperature Range | -40 °C to 80 °C |
|---|---|
| Degree of Protection | IP65 |
| Durability (Mechanical Cycles) | minimum 100 cycles |
The housing is rated for operation from –40 °C up to 80 °C.
It meets IP65 protection.
The locking system must endure at least 100 cycles.
