MC54/74F86 is a QUAD 2-INPUT EXCLUSIVE-OR GATE FAST SCHOTTKY TTL series product, supplied by ON Semiconductor. The operating voltage range of this series of products is 4.5-5.5 V, and the operating temperature range is -55-125 ℃.

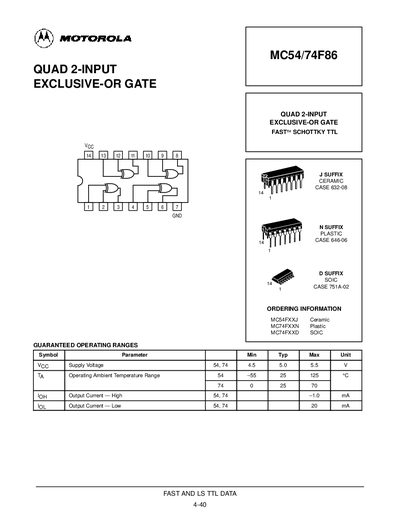

The MC54/74F86 is a quad 2‑input exclusive‑OR (XOR) gate offered in both ceramic (MC54FXXJ) and plastic (MC74FXXN) packages. The document lists ordering information, guaranteed operating ranges, and fast/LS TTL data for the device.
Key electrical parameters are detailed, including supply voltage, input thresholds, output current limits, propagation delays, and AC characteristics across the specified temperature ranges.
| Supply Voltage (Voc) | 5.0 V min / 5.5 V typ / 5.5 V max |
|---|---|
| Operating Ambient Temperature Range (Ta) | -55 °C to 125 °C |
| Input HIGH Voltage (VIH) | 2.0 V (guaranteed) |
| Input LOW Voltage (VIL) | 0.8 V (guaranteed) |
| Output Current – High (loH) | -1.0 mA |
| Output Current – Low (loL) | 20 mA |
| Propagation Delay (tPLH) | 3.0 ns min / 4.0 ns typ / 5.5 ns max |
The device is guaranteed to operate with a supply voltage of 5.0 V minimum, 5.5 V typical, and 5.5 V maximum.
The MC54/74F86 can operate from –55 °C up to 125 °C ambient temperature.
Typical propagation delay (tPLH) is 4.0 ns, with a range from 3.0 ns to 5.5 ns.
