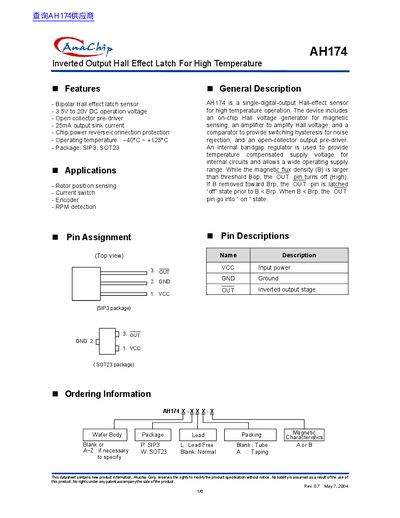

The AH174 is a single‑digital‑output Hall‑effect sensor designed for high‑temperature operation. It features a bipolar Hall element, open‑collector pre‑driver, 25 mA output sink current, and reverse‑connection protection, with a supply range of 3.5 V to 20 V.
Typical applications include rotor‑position sensing, current switching, encoder feedback, and RPM detection. The device is offered in SIP‑3 and SOT‑23 packages and can be ordered using the part number format AH174 X‑XXX‑X.
| Supply voltage range | 3.5 V – 20 V DC |
|---|---|
| Output sink current | 25 mA |
| Operating temperature range | -40 °C to +125 °C |
| Maximum supply voltage (VCC) | 20 V |
| Output off voltage (Vout(off)) | 20 V |
| Power dissipation (SIP‑3) | 550 mW |
| Power dissipation (SOT‑23) | 230 mW |
| Magnetic operate point (Bop) – grade A | 15 Gauss – 60 Gauss |
| Package types | SIP‑3, SOT‑23 |
The AH174 operates from 3.5 V to 20 V DC.
It can sink up to 25 mA of current.
The device works from –40 °C up to +125 °C.
The sensor is offered in SIP‑3 and SOT‑23 packages.
