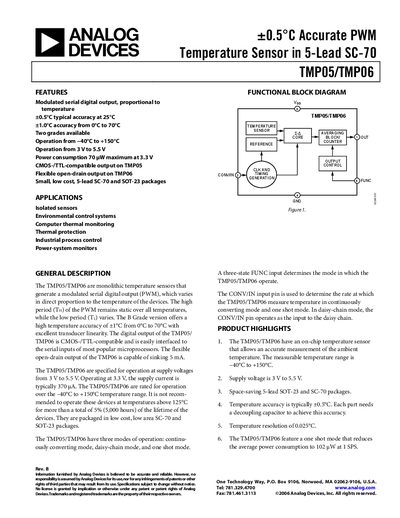

The TMP05/TMP06 are highly accurate ±0.5°C digital temperature sensors with 5-lead SC-70 and SOT-23 packages for a wide variety of applications, including industrial process control, computer thermal monitoring, power-system monitors, environmental control systems, and isolated sensors.
The TMP05 and TMP06 are monolithic temperature sensors that output a modulated PWM signal proportional to temperature. They operate from –40 °C to +150 °C and are supplied at 3 V to 5.5 V, available in compact 5‑lead SC‑70 and SOT‑23 packages. The TMP05 offers a CMOS/TTL‑compatible push‑pull output, while the TMP06 provides an open‑drain output capable of sinking 5 mA.
Key specifications include typical accuracy of ±0.5 °C at 25 °C, temperature resolution of 0.025 °C, and ultra‑low power consumption (70 pW at 3.3 V). The devices support continuous, daisy‑chain, and one‑shot operating modes, making them suitable for environmental control, computer thermal monitoring, industrial process control, and power‑system monitoring.
| Supply Voltage | 3 V – 5.5 V |
|---|---|
| Typical Accuracy (A grade) | ±0.5 °C at 25 °C |
| Operating Temperature Range | –40 °C to +150 °C |
| Temperature Resolution | 0.025 °C |
| Power Consumption (3.3 V) | 70 pW maximum |
| Package Types | 5‑lead SC‑70 and SOT‑23 |
The sensors operate from 3 V to 5.5 V.
The TMP05 provides a typical accuracy of ±0.5 °C at 25 °C.
Both devices are offered in 5‑lead SC‑70 and SOT‑23 packages.
