ADT75 is a ±1°C accurate 12-bit digital temperature sensor with SMBus/I2C compatible interface, operating temperature range from -55°C to +125°C, operating voltage range from 3V to 5.5V.

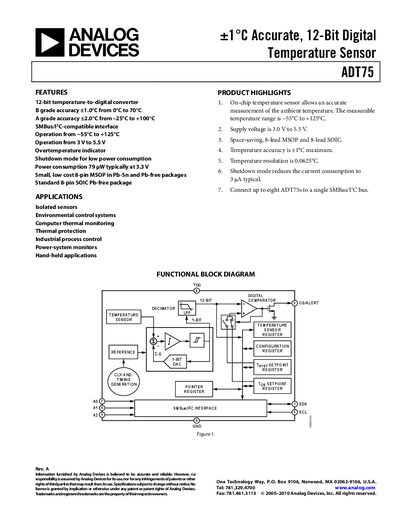

The ADT75 is a complete temperature monitoring system available in 8‑lead MSOP and SOIC packages. It integrates a band‑gap temperature sensor with a 12‑bit ADC, providing a resolution of 0.0625 °C and features such as shutdown mode and an OS/ALERT open‑drain output.
Designed for a wide range of applications—including isolated sensors, environmental control, computer thermal monitoring, industrial process control, and hand‑held devices—the device operates from –55 °C to +125 °C and from 3 V to 5.5 V supply voltage. Up to eight ADT75 devices can share a single SMBus/I²C bus.
| Temperature accuracy (A‑grade) | +2 °C (‑25 °C to +100 °C) |
|---|---|
| Temperature accuracy (B‑grade) | +1 °C (0 °C to +70 °C) |
| Temperature resolution | 0.0625 °C |
| ADC resolution | 12 bits |
| Supply voltage range | 3 V to 5.5 V |
| Typical power consumption (3.3 V) | 79 pW |
| Shutdown mode current (3.3 V) | 3 µA typical |
| Temperature conversion time | 60 ms |
| Update rate | 100 ms |
It requires a supply voltage between 3 V and 5.5 V.
In shutdown mode the device draws typically 3 µA at 3.3 V.
