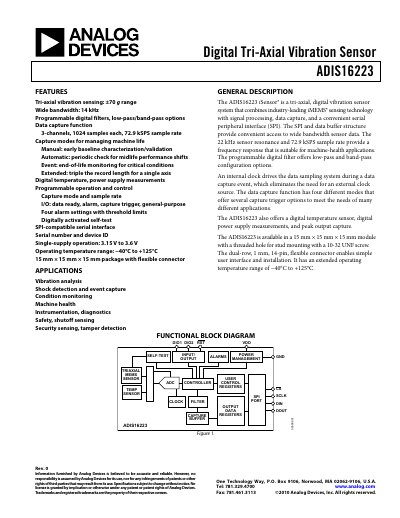

The ADIS16223 is a digital tri-axial vibration sensor from Analog Devices, with a ±70 g measurement range and 14 kHz bandwidth. It also features programmable digital filters, a data capture function, and capture modes for managing machine life.
The ADIS16223 iSensor® combines a tri‑axial MEMS accelerometer, on‑chip signal processing and a SPI‑compatible serial interface. It provides up to ±70 g measurement range, 14 kHz bandwidth, programmable digital filters and a 1024‑sample capture buffer for each axis.
The device operates from a single 3.15 V to 3.6 V supply, works from –40 °C to +125 °C, and delivers up to 72.9 kSPS sample rate. It includes built‑in temperature and power‑supply monitoring, alarm thresholds, and flash‑backed configuration registers for reliable long‑term machine‑health monitoring.
| Measurement Range | ±70 g |
|---|---|
| Sensitivity | 4.768 mg/LSB |
| Bandwidth | 14 kHz |
| Operating Temperature | −40 °C to +125 °C |
| Supply Voltage | 3.15 V to 3.6 V |
| Sample Rate | 72.9 kSPS |
| Sensor Resonant Frequency | 22 kHz |
| Output Noise (rms) | 477 mg |
| Capture Mode Current | 43 mA (typical) to 52 mA |
| Sleep Mode Current | 230 µA |
The sensor measures acceleration from –70 g to +70 g.
It uses an SPI‑compatible serial interface.
It operates from –40 °C up to +125 °C.
The device can sample at up to 72.9 kSPS.
