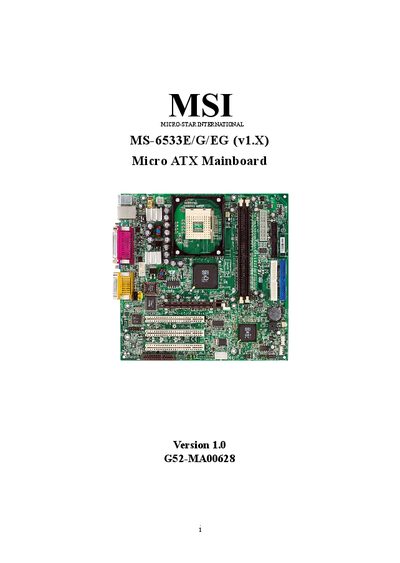

MSI MS-6533E/G/EG Micro ATX Mainboard User Manual

About this manual

This manual covers safety instructions, hardware installation steps, and BIOS setup for the MSI MS-6533E/G/EG Micro ATX motherboard. It includes detailed connector pinouts, component guides, and troubleshooting tips.

Additional sections provide a glossary of technical terms and reference information on supported CPUs, memory types, and power requirements, helping users configure and maintain the board safely and efficiently.

What's inside

• Getting Started
• Mainboard Specification
• Mainboard Layout
• Quick Components Guide
• Hardware Setup
• CPU Installation
• DDR Module Installation
• Power Supply Connectors
• BIOS Setup
• Glossary

Specifications

Frequently asked questions

What safety precautions should be followed when installing the MSI MS-6533E/G/EG motherboard?

Read the safety instructions, keep the board away from humidity, place it on a stable flat surface, do not cover ventilation openings, ensure the power voltage is 110 V‑220 V, unplug the power cord before inserting any add‑on cards, and avoid liquid exposure.

Which CPUs are compatible with the MSI MS-6533E/G/EG motherboard?

The board is designed for Intel Pentium 4 processors that use the 478‑pin package.

What power connectors are provided on the motherboard?

It includes an ATX 20‑Pin Power Connector and an ATX 12V Power Connector.

What is the form factor of the MSI MS-6533E/G/EG board?

The motherboard follows the Micro ATX form factor.
