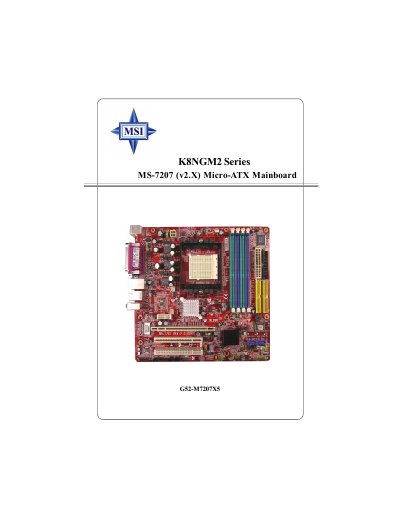

MS-7207 (v2.X) Micro-ATX Mainboard K8NGM2 Series G52-M7207X5
This manual covers safety instructions, unpacking checklist, and detailed hardware setup for the MS-7207 Micro‑ATX motherboard, including CPU, memory, power supply, and connector installation. It also explains the board's layout, slot configuration, and optional features such as TV‑Out and Wi‑Fi modules.
Later sections guide users through BIOS configuration, DigiCell utilities, and NVIDIA RAID setup, with step‑by‑step procedures for Windows display settings and RAID management. Technical support resources and FCC compliance information are also included. This manual is written in Chinese.
| Supported CPU | 64-bit AMD K8 Athlon64 / Athlon64FX (Socket 939) |
|---|---|
| Maximum Memory | 4 GB DDR333/400 DDR SDRAM (dual‑channel) |
| PCI Express Slots | 1 × PCI‑E x16, 1 × PCI‑E x1, 2 × 32‑bit PCI |
| SATA Ports | 4 × SATAII (up to 300 MB/s) |
| USB Ports | 8 × USB 2.0 (4 rear, 4 via external bracket) |
| RAID Support | nForce 430: RAID 0,1,0+1,5; nForce 410: RAID 0,1 |
It supports 64‑bit AMD K8 Athlon64 and Athlon64FX processors using Socket 939.
The board provides eight USB 2.0 ports – four on the rear I/O and four on the external bracket.
The motherboard can handle up to 4 GB of DDR333/400 DDR SDRAM in dual‑channel mode.
With the nForce 430 chipset you get RAID 0, 1, 0+1 and 5; the nForce 410 supports RAID 0 and 1.
