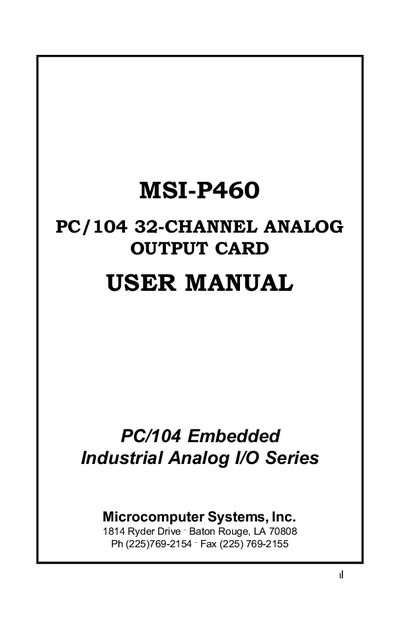

The MSI‑P460 is an 8‑bit stack‑through PC/104 analog output card that supplies thirty‑two analog channels for industrial embedded applications. It draws +5 V and +12 V from the PC/104 bus and uses four AD7228A DACs with unity‑gain buffers.
The manual covers card addressing via JP1 jumpers, selectable output voltage ranges using Jumper A, simple byte‑wise programming of each channel, and the pinout of the 40‑pin AMP connector. A schematic diagram and tables of I/O addresses and connector pins are also included.
| Number of channels | 32 analog output channels |
|---|---|
| Resolution | 8‑bit |
| Output voltage range | 0‑5 V or 0‑10 V selectable via jumper |
| DAC used | Four Analog Devices AD7228A |
| Connector type | 40‑pin AMP type 103311-8 |
| Addressing mode | 16‑bit I/O‑mapped, jumper selectable |
The range is set with Jumper A: an uninstalled jumper selects the low range (0‑5 V) and an installed jumper selects the high range (0‑10 V).
