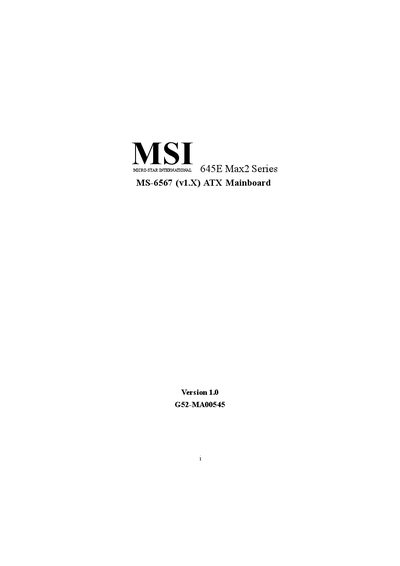

This document describes the features and characteristics of the MSI Version 1.0 G52-MA00545 MS-6567 (v1.X) ATX Mainboard 645E Max2 Series MICRO-STAR INTERNATIONAL.
This manual covers the MSI 645E Max2 (MS-6567) ATX motherboard, a board based on SiS 645DX and 961B chipsets designed for Intel Pentium 4 Socket 478 CPUs. It includes safety instructions, a quick‑start guide, detailed specifications, and layout diagrams.
Key sections include CPU and chipset details, memory and expansion slot information, on‑board IDE and peripheral connectors, BIOS features, Ethernet controller specs, and audio configuration, as well as troubleshooting and appendix material such as the KaraOK function.
| CPU socket | Socket 478 for Pentium 4 processors |
|---|---|
| Front‑side bus | 400/533 MHz |
| Maximum memory | 3 GB without ECC |
| Memory slots | Three 184‑pin DDR DIMM sockets |
| Ethernet controller | Realtek RTL 8101L, 10/100 Mb/s |
It uses a Socket 478 designed for Intel Pentium 4 processors.
The motherboard provides five 32‑bit Master PCI slots (PCI v2.2).
Yes, it has an AC97 link controller and an optional ALC 650 6‑channel audio codec with SPDIF I/O.
