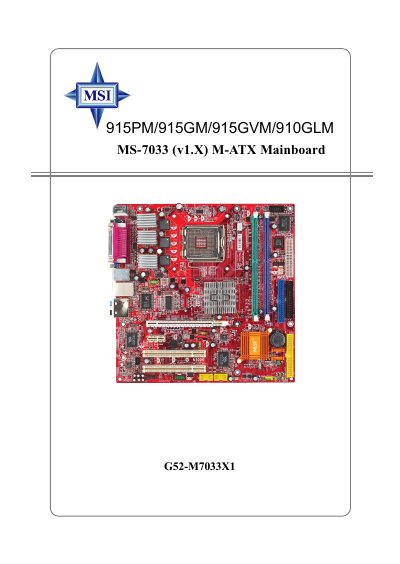

MSI 915PM/915GM/915GVM/910GLM Manual

This is a manual of Micro-Star MS-7033 motherboard, which details the functions and usage of the motherboard.

Brand: MSI
Category: Other device
Document type: User Manual
Language: Chinese
Pages: 94
File format: PDF
File size: 6.7 MB
Published: 04 May, 2012
Updated: 01 October, 2023
MD5 checksum: B12350109EA4A3F942FE23570D582099
PDF: MSI 915PM/915GM/915GVM/910GLM Manual PDF

About this manual

This manual provides step‑by‑step instructions for installing and configuring the MSI G52-M7033X1MS-7033 M‑ATX motherboard. It includes safety guidelines, hardware setup, CPU and memory installation, power‑supply connections, and detailed descriptions of the back‑panel connectors.

Additional sections cover BIOS setup, VIA VT6410 IDE RAID configuration, and CMI9880L audio codec settings, along with troubleshooting tips and technical support information. This manual is written in Chinese.

What's inside

Getting Started
Mainboard Specifications
Hardware Setup
CPU Installation
Memory Installation
Power Supply Connections
Back Panel Connectors
BIOS Setup
VIA VT6410 IDE RAID
CMI9880L Audio Codec

Specifications

Supported CPUs	Intel® Pentium 4 Prescott (LGA775) processors
Memory type	DDR 333/400
Maximum memory	128 MB, 256 MB or 512 MB DDR
Serial ATA ports	2
USB ports	8 × USB 2.0/1.1 (4 rear, 4 front)
Audio codec	CMI9880L, 8‑channel HDA

Frequently asked questions

What CPUs are supported by this motherboard?

The board supports Intel® Pentium 4 Prescott processors in the LGA775 package.

How many USB ports are available on the motherboard?

It provides eight USB 2.0/1.1 ports – four on the rear I/O and four on the front panel.
