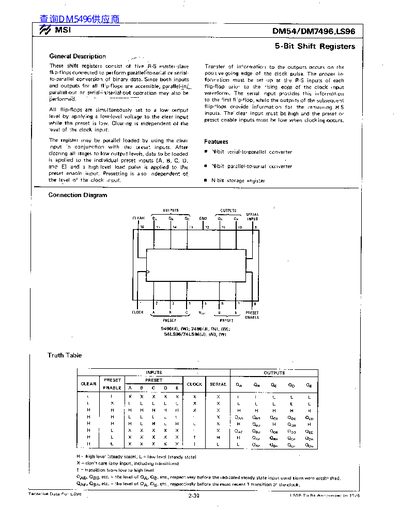

This document provides technical specifications for the MSI DM54/DM7496 and LS96 series of 5-bit shift registers. These devices consist of five R-S master-slave flip-flops designed to perform parallel serial or serial-to-parallel conversion of binary data.
The datasheet details electrical characteristics, switching parameters, logic diagrams, and timing sequences for operation at a supply voltage of 5V.
| Number of Bits | 5-bit |
|---|
The device supports parallel-in/parallel-out or serial-in/serial-out operations.
All flip-flops are set to a low output level by applying a low-level voltage to the clear input while the preset is low.
