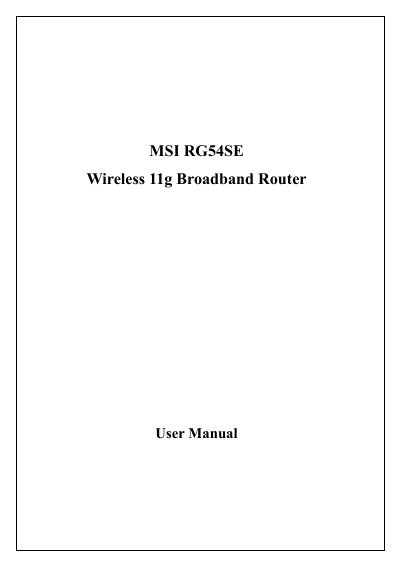

This manual introduces the functions and usage of MSI RG54SE Wireless 11g Broadband Router.
This manual describes the MSI RG54SE wireless 11g broadband router, covering hardware installation, software configuration, and management via the web interface. It includes safety precautions, product features, and regulatory compliance information for European markets.
Detailed sections guide users through configuring SSID, DHCP, static IP, and advanced settings such as WPA/WPA2 security, port forwarding, and dynamic DNS. Configuration examples illustrate typical home and office deployments.
| Product Name | RG54SE Wireless 11g Broadband Router |
|---|---|
| Standard | 802.11b/g (Wireless), 802.3 (10BaseT), 802.3u (100BaseT) |
| Data Transfer Rate | 54 Mbps wireless, 100 Mbps Ethernet |
| Frequency Band | 2.4 GHz – 2.497 GHz ISM band |
| RF Output Power | CCK < 17 dBm, OFDM < 13.5 dBm |
| Receiver Sensitivity | 802.11b -80 dBm@8%, 802.11g -68 dBm@5% |
| Operation Range | 30 to 280 meters (depends on environment) |
| Antenna | Detachable SMA antenna |
| Power Consumption | 7.5 V DC power adapter |
| Operating Temperature | 0 °C to 50 °C |
| Dimensions | 137 mm × 96 mm × 35 mm |
The router supports up to 54 Mbps on the wireless side and 100 Mbps on the Ethernet side.
It operates in the 2.4 GHz ISM band, specifically from 2.400 GHz to 2.497 GHz.
The device uses a 7.5 V DC power adapter.
