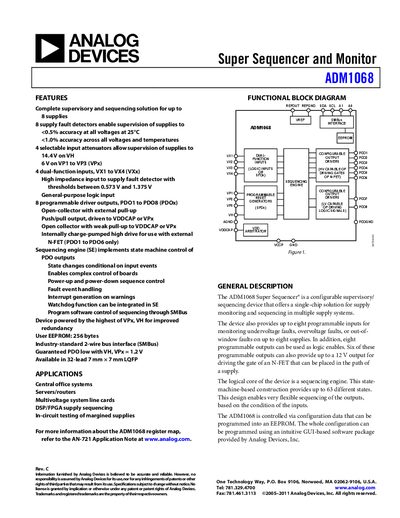

This document describes the features and characteristics of the Super Sequencer and Monitor ADM1068 Rev. C. It is a complete monitoring and sequencing solution that can supervise up to 8 power supplies with high accuracy and reliability.
The ADM1068 Super Sequencer and Monitor is a configurable supervisory and sequencing device for up to eight supplies. It offers programmable inputs and outputs, a sequencing engine with up to 63 states, and SMBus‑based software control.
The handbook includes functional block diagrams, detailed pin descriptions, electrical specifications, absolute maximum ratings, typical performance curves, and an ordering guide for the 32‑lead LQFP package.
| VH supply voltage range | 3.0 V to 14.4 V |
|---|---|
| VPx supply voltage range | 3.0 V to 6.0 V |
| Operating temperature range | –40 °C to +85 °C |
| Supply current (typical) | 6 mA |
| User EEPROM size | 256 bytes |
| Number of programmable driver outputs | 8 (PDO1‑PDO8) |
| Maximum voltage on VH pin | 16 V |
| Maximum voltage on PDOx pins | 16 V |
| Package type | 32‑lead LQFP (7 mm × 7 mm) |
The VH pin operates from 3.0 V up to 14.4 V.
It provides eight programmable driver outputs, labeled PDO1 through PDO8.
The device includes a 256‑byte EEPROM.
The part is supplied in a 32‑lead low‑profile quad flat package (LQFP) measuring 7 mm × 7 mm.
