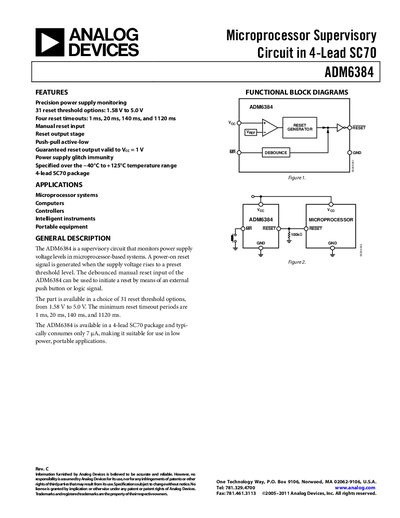

ADM6384 is a supervisory circuit manufactured by Analog Devices, USA. It monitors the power supply voltage levels in microprocessor-based systems. When the supply voltage rises to a preset threshold level, a power-on reset signal is generated. The debounced manual reset input of the ADM6384 can be used to initiate a reset by means of an external pulse.
The ADM6384 supervisory circuit monitors power‑supply voltage in microprocessor‑based systems and generates a reset when the voltage falls below a programmable threshold. It is suited for microprocessor systems, computers, controllers, intelligent instruments, and portable equipment.
Key features include 31 selectable reset‑threshold options (1.58 V to 5.0 V), four reset‑timeout periods (1 ms, 20 ms, 140 ms, 1120 ms), a manual reset input, a push‑pull active‑low reset output, and operation over –40 °C to +125 °C in a 4‑lead SC70 package.
| Operating Voltage Range | 1 V to 5.5 V |
|---|---|
| Supply Current (typical) | 7 pA |
| Reset Threshold Voltage (example) | 3.00 V to 3.15 V |
| Reset Timeout Period (minimum) | 1 ms |
| Operating Temperature Range | –40 °C to +125 °C |
| Reset Output Current | 20 mA |
The device operates from 1 V up to 5.5 V.
It offers four timeout options: 1 ms, 20 ms, 140 ms, and 1120 ms.
The part is supplied in a 4‑lead SC70 (KS‑4) package.
Typical supply current is 7 pA with no load at 5.5 V.
