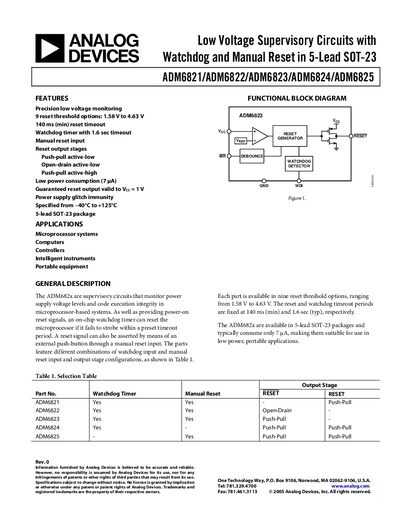

The ADM682x series are precision low voltage supervisory circuits with watchdog and manual reset functions and are available in a 5-lead SOT-23 package.
The ADM682x family provides low‑voltage supervisory circuits with watchdog and manual reset functions, designed for microprocessor‑based systems, computers, controllers, intelligent instruments, and portable equipment. Each device monitors supply voltage and can generate power‑on reset signals, with optional watchdog timing to reset a processor if it stops responding.
Key features include nine selectable reset thresholds (1.58 V to 4.63 V), a 140 ms minimum reset timeout, a 1.6 s watchdog timeout, push‑pull or open‑drain reset outputs, manual reset input, and ultra‑low 7 pA supply current. The parts are offered in a 5‑lead SOT‑23 package and operate from –40 °C to +125 °C.
| Supply Voltage Range | 1 V – 5.5 V |
|---|---|
| Reset Timeout Period | 140 ms (min) – 280 ms (max) |
| Watchdog Timeout Period | 1.12 s – 2.40 s |
| Supply Current (typical) | 7 pA |
| Operating Temperature Range | –40 °C to +125 °C |
| Package | 5‑lead SOT‑23 |
The reset timeout period is specified as 140 ms minimum, 200 ms typical, and 280 ms maximum.
There are nine reset threshold options ranging from 1.58 V to 4.63 V.
All ADM682x devices are available in a 5‑lead SOT‑23 package.
The watchdog timeout period ranges from 1.12 seconds to 2.40 seconds.
