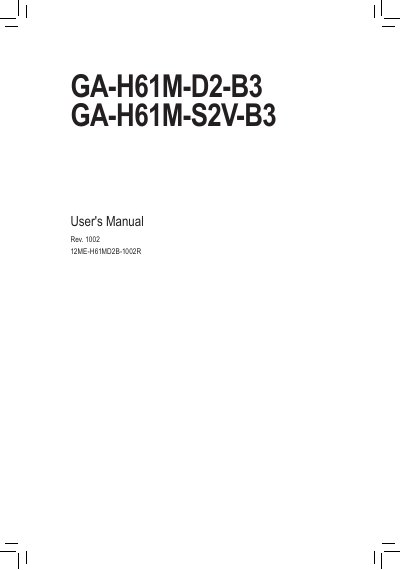

This is a user manual for GA-H61M-D2-B3/GA-H61M-S2V-B3 motherboard. It introduces the hardware installation, firmware upgrade, BIOS settings and other content of the motherboard.
This manual covers the GA-H61M-D2-B3 and GA-H61M-S2V-B3 micro‑ATX motherboards. It includes a layout diagram, block diagram, hardware installation instructions, BIOS configuration, and driver installation guidance. The document also lists all connectors, ports, and supported components.
Key sections include product specifications (CPU support, memory capacity, graphics ports, audio codec, LAN, expansion slots, storage and USB interfaces), detailed installation precautions, step‑by‑step hardware assembly, BIOS feature descriptions, and contact information for technical support. This manual is written in Chinese.
| CPU Support | Intel® Core i7/i5/i3, Pentium®, Celeron® in LGA1155 package |
|---|---|
| Chipset | Intel® H61 Express |
| Memory Slots | 2 x 1.5 V DDR3 DIMM sockets, up to 16 GB total |
| Supported Memory Speed | DDR3 1333/1066/800 MHz |
| Onboard Graphics | 1 × D‑Sub port, 1 × DVI‑D port (max 1920×1200) |
| Audio Codec | Realtek ALC889, HD Audio 2/4/5.1/7.1‑channel |
| LAN | Realtek RTL8111E (10/100/1000 Mbit) |
| Expansion Slots | 1 × PCIe x16, 3 × PCIe x1 (PCIe 2.0 standard) |
| SATA Connectors | 4 × SATA 3 Gb/s ports |
| USB Ports | Up to 10 × USB 2.0/1.1 (6 rear, 4 via internal headers) |
| Form Factor | Micro ATX (24.4 cm × 19.5 cm) |
The boards support Intel® Core i7, i5, i3, Pentium®, and Celeron® processors that use the LGA1155 socket.
There are six USB 2.0/1.1 ports on the rear panel.
The board includes one D‑Sub (VGA) port and one DVI‑D port, supporting up to 1920 × 1200 resolution.
A Realtek RTL8111E chip provides 10/100/1000 Mbit Ethernet connectivity.
