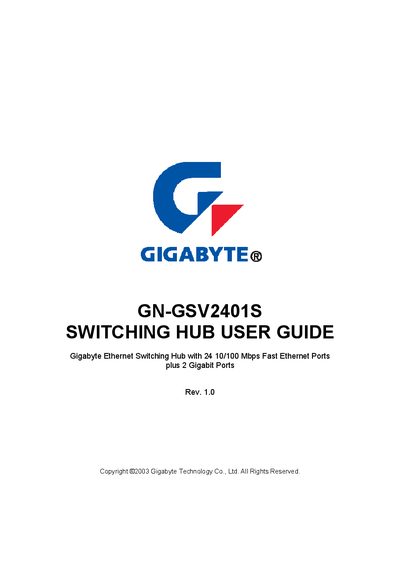

This document is the user guide for the GN-GSV2401S SWITCHING HUB. The switching hub features 24 10/100 Mbps fast Ethernet ports and 2 gigabit ports, providing high performance and reliability.
This guide walks users through unpacking, installation, and basic operation of the Gigabyte GN‑GSV2401S Switching Hub, a 2+24 port 10/100/1000 Mbps Ethernet device. It includes safety warnings, FCC/CE compliance information, and detailed instructions for connecting power and network cables.
Later chapters cover console management via an RS‑232 port, detailed product specifications such as power requirements and physical dimensions, and warranty and support information. Appendices provide contact details for technical assistance.
| RS-232 port interface | Console management & system configuration |
|---|---|
| Power Supply | 110 ~ 220 V |
| Operation Temperature | 0 ~ 40 °C |
| Storage Temperature | -20 ~ 65 °C |
| Dimensions (W x L x H) | 440mm x 250mm x 45mm |
| Weight | Gross Weight 3500 + 5g |
The hub provides an RS‑232 console port; connect a terminal using a null‑modem cable or a null‑modem adapter on a straight‑through serial cable.
Gigabyte offers a 1‑year limited warranty covering defects in material and workmanship.
