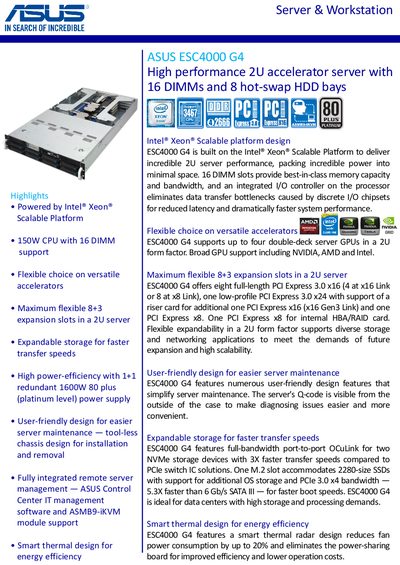

The ASUS ESC4000 G4 is a 2U accelerator server with 16 DIMM slots, 8 hot‑swap HDD bays, and support for up to four double‑deck GPUs.
The ESC4000 G4 is a high‑performance 2U accelerator server built on the Intel® Xeon® Scalable Platform. It offers 16 DIMM slots for up to 2048 GB of DDR4 memory, eight hot‑swap 3.5" HDD bays, and flexible expansion with eight full‑length PCIe 3.0 x16 slots plus additional PCIe slots.
The server supports up to four double‑deck GPUs from NVIDIA, AMD or Intel, includes dual‑port Gigabit LAN, redundant 1600 W 80 PLUS Platinum power supplies, and a smart thermal design that reduces fan power consumption. It is targeted at data‑center environments requiring high storage and processing capacity.
| Processor Support | 2 x LGA 3647 Intel Xeon Scalable (Skylake SP/F) |
|---|---|
| Memory Slots | 16 DIMM slots (8 per CPU) |
| Maximum Memory Capacity | Up to 2048 GB RDIMM |
| GPU Support | Up to four double‑deck server GPUs |
| Expansion Slots | 8 + 3 PCIe slots (8 × PCIe 3.0 x16, 1 × PCIe 3.0 x24, 1 × PCIe x16, 1 × PCIe x8, 1 × PCIe x8 internal) |
| Hot‑swap HDD Bays | 8 hot‑swap 3.5" bays |
| Power Supply | 1+1 redundant 1600 W 80 PLUS Platinum |
| Dimensions | 800 mm × 440 mm × 88 mm (2U) |
It can support up to four double‑deck server GPUs.
The server uses a redundant 1+1 1600 W 80 PLUS Platinum power supply.
The server provides eight hot‑swap 3.5" HDD bays.
It includes a dual‑port Intel I350‑AM2 Gigabit LAN controller, a management LAN port, and additional USB ports.
