The P5G41T-M LX motherboard supports Intel LGA775 Core™ 2 Extreme / Core2 Quad/ Core2 Duo processors with 1333/ 1066/ 800 MHz FSB, making it an ideal choice for multitasking, multimedia and gaming enthusiasts.

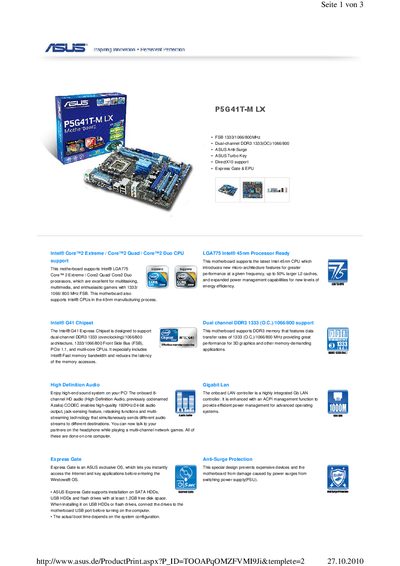

This manual describes the ASUS P5G41T-M LX motherboard, its supported Intel 45 nm Core 2 processors, Intel G41 Express chipset, and a range of performance‑enhancing technologies such as Turbo Key, Q‑Fan, EPU, and Express Gate. It also outlines the board’s compliance with ROHS and its power‑saving features.
The document is organized into sections covering specifications, over‑clocking features, back‑panel I/O ports, internal connectors, BIOS utilities, accessories, and form‑factor details. It includes tables for memory support, expansion slots, storage interfaces, and power connectors, as well as instructions for using utilities like EZ Flash 2 and CrashFree BIOS. This manual is written in German.
| CPU Socket | LGA775 |
|---|---|
| Supported CPUs | Intel Core 2 Extreme, Quad, Duo (45 nm, LGA775) |
| Chipset | Intel G41 Express |
| Front Side Bus | 1333/1066/800 MHz |
| Memory | 2 × 240‑pin DDR3 DIMM, up to 8 GB, 1333/1066/800 MHz, non‑ECC, unbuffered |
| SATA Ports | 4 × SATA 8 Gbps |
| USB Ports | 8 × USB 2.0 (4 mid‑board, 4 back panel) |
| Audio Codec | Realtek ALC887 8‑Channel |
| Integrated Graphics | Intel GMA X4500, up to 1 GB shared memory |
| Form Factor | uATX |
| BIOS | 8 Mb Flash ROM, AMI BIOS |
| Power Connectors | 24‑pin ATX, 4‑pin ATX 12 V |
It supports Intel Core 2 Extreme, Core 2 Quad, Core 2 Duo and other LGA775 45 nm processors.
The board provides eight USB 2.0 ports – four on the mid‑board and four on the back panel.
Up to 8 GB of DDR3 1333/1066/800 MHz non‑ECC unbuffered memory across two DIMM slots.
