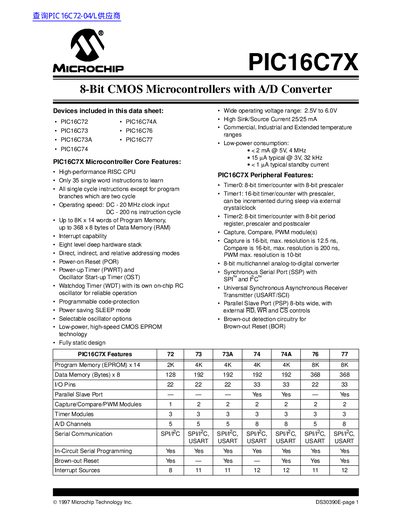

This data sheet provides detailed information on the PIC16C7X microcontrollers, including their features, functions, operating speed, power range, and operating temperature range.
The PIC16C7X family is a low‑cost, high‑performance 8‑bit CMOS microcontroller series with integrated 8‑bit A/D converters. It offers a reduced 35‑instruction set, eight‑level deep hardware stack, multiple timer modules, capture/compare/PWM, serial ports (SPI/I²C and USART), and a parallel slave port. Various device variants (C and LC) provide EPROM or OTP memory and operate over standard or extended voltage ranges.
The document includes a detailed table of contents covering general description, device varieties, architectural overview, memory organization, peripheral modules, special CPU features, instruction set summary, development support, electrical characteristics, packaging information, and several appendices. Pin diagrams for multiple package types and a product identification system are also provided.
| Maximum Frequency of Operation (MHz) | 20 |
|---|---|
| EPROM Program Memory (x14 words) | 512‑1K‑1K‑2K‑2K |
| Data Memory (bytes) | 36‑36‑68‑128‑128‑128 |
| Operating Voltage Range (V) | 2.5‑6.0 |
| I/O Pins | 22‑33‑22‑33 |
They operate up to a 20 MHz clock input with a 200 ns instruction cycle.
The devices operate from 2.5 V to 6.0 V.
