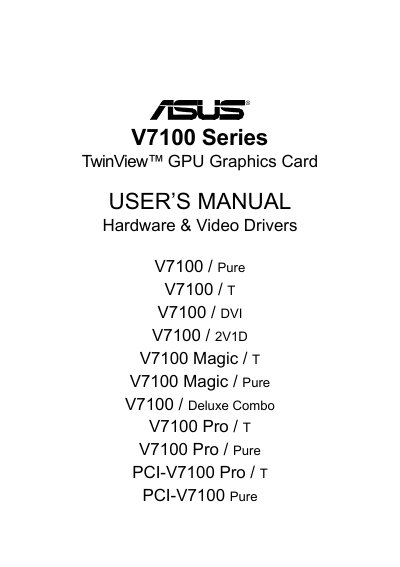

This manual introduces the features and usage of ASUS V7100 series graphics cards.
This manual covers the hardware layout, installation procedures, and software setup for the ASUS V7100 Series graphics cards. It includes detailed instructions for installing display drivers, DirectX and OpenGL utilities, and configuring the TwinView dual‑display feature.
The document also contains compliance information (FCC Part 15 Class B, Canadian ICES‑003), troubleshooting tips, and a full index of features such as AGP 4X/2X operation, high‑speed video memory, and supported operating systems.
| Interface | AGP 4X/2X |
|---|---|
| Video Memory | 32 / 16 MB high‑speed memory, up to 2.7 GB/s bandwidth |
| Fill Rate | 700 million texels per second |
| Triangle Rate | up to 20 million triangles per second |
| Dual‑display Support | TwinView true dual‑display (TV‑out/DVI models only) |
| RAMDAC | 350 MHz, supports resolutions up to 2048 × 1536 true color |
| OpenGL Support | Version 1.2 compliant |
| DirectX Support | DirectX 7 features |
It complies with FCC Part 15 Class B digital device limits and includes the required interference‑avoidance statements.
The integrated 350 MHz RAMDAC supports resolutions up to 2048 × 1536 in true color.
