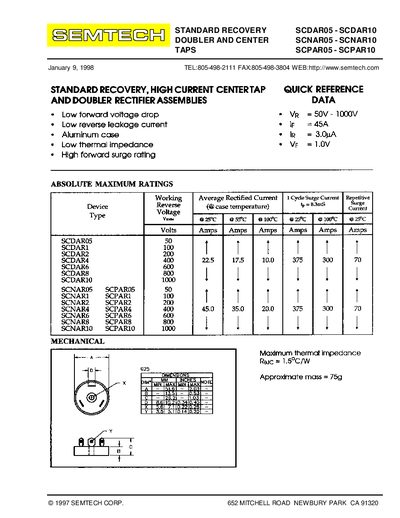

This document introduces the characteristics and features of standard recovery doubler and center taps scdar05 - scdar10 scnar05 - scnar10 scpar05 - scpar10.
This datasheet provides electrical and mechanical specifications for Semtech's standard recovery, high‑current center‑tap and doubler rectifier assemblies. It includes forward voltage ratings, reverse leakage current, thermal impedance, and dimensional data for the SCDAR, SCNAR and SCPAR product families.
Key characteristics include a forward voltage range of 50 V‑1000 V, low reverse leakage current (45 A), maximum thermal impedance of 1.5 °C/W, operating temperature from –55 °C to +150 °C, and an approximate mass of 75 g per device.
| Maximum forward voltage (Ve) | 50 V – 1000 V |
|---|---|
| Reverse leakage current (IF) | 45 A |
| Maximum thermal impedance (Reo) | 1.5 °C/W |
| Approximate mass | 75 g |
| Operating temperature range | -55 °C to +150 °C |
The devices are rated for a forward voltage between 50 V and 1000 V.
The datasheet lists a low reverse leakage current of 45 A.
They operate from –55 °C up to +150 °C.
Each assembly has an approximate mass of 75 g.
