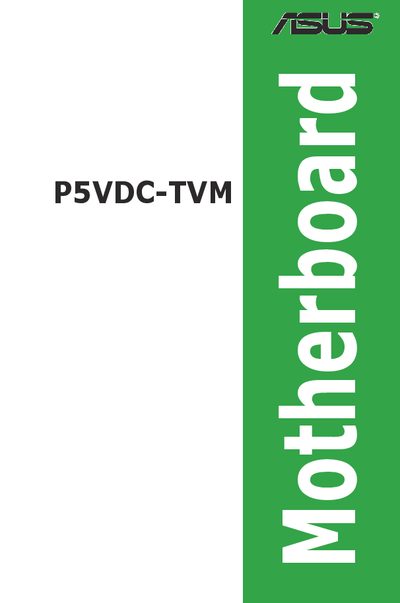

This document is a user manual for the P5VDC-TVM ii motherboard produced by ASUSTeK COMPUTER INC. The manual provides detailed descriptions of the product and software, as well as instructions for use and maintenance.
This manual introduces the ASUS P5VDC‑TVM motherboard, covering safety precautions, product overview, CPU and memory installation, expansion slots, jumpers, and connector details. It also lists the chipset, supported processors, memory types, storage options, audio, LAN, USB ports, and power requirements.
Later sections explain the BIOS setup utility, PC Health Status screen, power management options, and password configuration, helping users configure and troubleshoot the system.
| CPU socket | LGA775 |
|---|---|
| Chipset (Northbridge) | VIA P4M800 PRO |
| Chipset (Southbridge) | VIA VT8237R Plus |
| Front Side Bus | 800/533 MHz |
| Memory slots | 2 × 240‑pin DIMM (DDR2, 333 MHz) |
| PCI slots | 3 |
| Ultra ATA drives | 4 × Ultra ATA 133/100/66 |
| Serial ATA drives | 2 × SATA |
| Audio codec | Realtek ALC655 6‑channel |
| LAN controller | Realtek RTL 8110C 10/100 Mbps |
| USB ports | 8 × USB 2.0 |
| Form factor | Micro ATX (9.6 in × 9.0 in) |
| Power connectors | 20‑pin ATX + 4‑pin ATX 12 V |
It uses an LGA775 socket for Intel Pentium 4 and Celeron processors.
The board supports up to eight USB 2.0 ports.
It is a Micro ATX board measuring 9.6 in × 9.0 in.
The Northbridge is a VIA P4M800 PRO and the Southbridge is a VIA VT8237R Plus.
