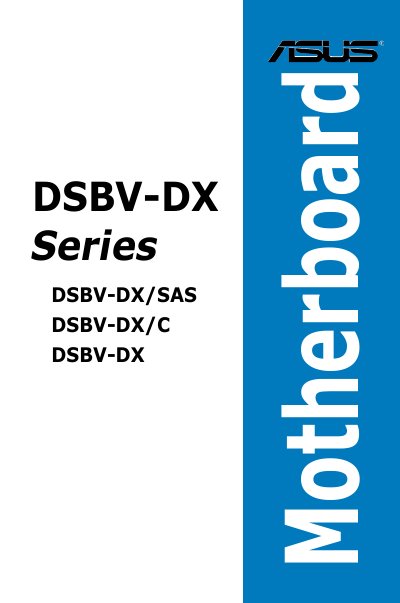

This document is an introduction to the DSBV-DX series motherboards by ASUSTeK COMPUTER INC. The series includes multiple models such as DSBV-DX/SAS, DSBV-DX/C, DSBV-DX ii E3306 Second Edition V2, etc. The document provides detailed descriptions and specifications of the products. ASUSTeK COMPUTER INC. provides this manual without any warranty or service, and shall not be liable for any damages caused by any defects or errors in this manual or the products described in it.
This manual covers the DSBV-DX Series motherboard hardware details, including CPU installation, memory configuration, expansion slots, and connector layouts. It also provides safety guidelines for handling the board and its components.
Additional sections guide users through powering up the system, configuring the BIOS, setting up RAID arrays, installing drivers for various operating systems, and using the included utilities. Reference diagrams and FCC/Canadian compliance statements are included at the end.
| PCI Express x8 slots (x8 and x4 link) | x8 and x4 link |
|---|---|
| ZCR slot | DSBV-DX/SAS model only |
| PCI/PCI‑X slots | Various |
| Package type | 1432‑pin FOBGA |
| Package dimensions | 42.5 mm × 42 mm × 5 mm |
