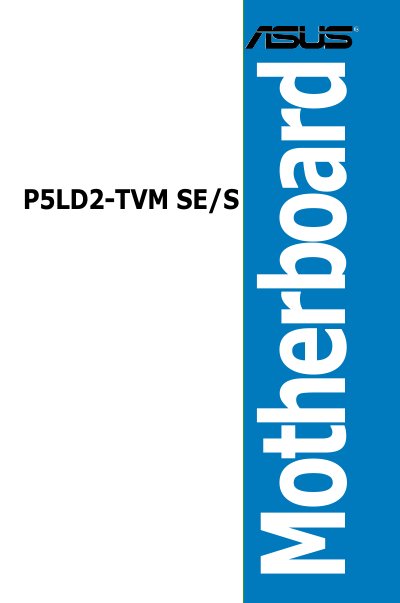

ASUS P5LD2-TVM SE/S Motherboard User Manual

This document provides copyright information and usage restrictions for the ASUSTeK COMPUTER INC. P5LD2-TVM SE/S ii motherboard. It also includes conditions for product warranty and service, as well as a disclaimer.

Brand: ASUS
Category: Motherboard
Document type: User Manual
Language: English
Pages: 72
File format: PDF
File size: 3.4 MB
Published: 04 May, 2012
Updated: 28 September, 2023
MD5 checksum: 3CA548291E448E00061EB2E5B90F593F
PDF: ASUS P5LD2-TVM SE/S Motherboard User Manual PDF

About this manual

This guide covers the hardware setup of the ASUS P5LD2‑TVM SE/S motherboard, including component installation, jumper settings, and connector descriptions. It also explains the supported CPU, memory configurations, and expansion slots.

The manual details BIOS configuration, password protection, power‑saving options, and how to save or discard changes. Safety precautions for electrical and operational hazards are also included.

What's inside

Product introduction
BIOS setup
Safety information
Notices
About this guide
Password Check

Specifications

PCI Express slot type	x1
PCI Express slot type	X16

Frequently asked questions

How do I save changes made in the BIOS setup?

Press F10 or select the "Exit & Save Changes" option to store the changes in CMOS RAM.

How can I discard changes made in the BIOS setup?

Choose the "Exit & Discard Changes" menu item to restore the previously saved values.

What does the Password Check option do in the BIOS?

When set to [Setup] or [Always], the BIOS checks for a user password when accessing Setup or during boot.
