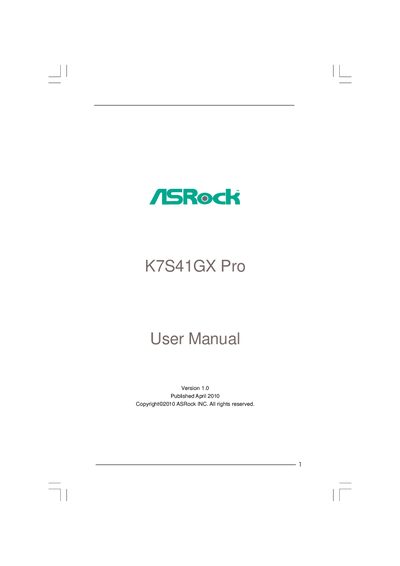

This manual describes the features and usage of the K7S41GX Pro motherboard.
This manual introduces the ASRock K7S41GX Pro motherboard, a Micro ATX board with AMD socket 462 support. It covers package contents, safety precautions, and detailed hardware installation instructions.
Key sections include CPU and memory installation, expansion slot usage, BIOS setup utility, hardware health monitoring, and software support via the included Support CD. The document also lists the board's technical specifications and provides troubleshooting guidance.
| Form Factor | Micro ATX (9.6" x 7.8") |
|---|---|
| CPU Socket | Socket 462 for AMD Sempron / Athlon / Athlon XP / Duron |
| Chipset | Northbridge SiS® 741GX, Southbridge SiS® 963L |
| Memory Slots | 2 DDR DIMM slots, max 2 GB, DDR 400/333/266 non‑ECC |
| Audio Codec | C‑Media® CMI9739A 5.1‑channel AC’97 |
| LAN | Realtek RTL8201 EL, 10/100 Mbps, Wake‑On‑LAN |
| Rear USB Ports | 4 × USB 2.0 ports |
| Supported Operating Systems | Microsoft Windows 2000 / XP |
The board supports Microsoft Windows 2000 and Windows XP.
There are four USB 2.0 ports on the rear I/O panel.
The integrated Mirage graphics can use up to 128 MB of shared memory.
It uses Socket 462 for AMD Sempron, Athlon, Athlon XP, and Duron processors.
