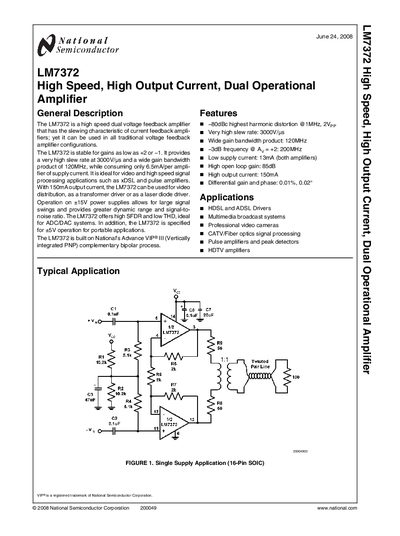

The LM7372 is a high speed dual voltage feedback amplifier that has the slewing characteristic of current feedback amplifiers; yet it can be used in all traditional voltage feedback amplifier configurations. The LM7372 is stable for gains as low as +2 or −1. It provides a very high slew rate at 3000V/µs and a wide gain bandwidth product of 120MHz, while consuming only 6.5mA/per amplifier of supply current. It is ideal for video and high speed signal processing applications such as xDSL and pulse amplifiers. With 150mA output current, the LM7372 can be used for video distribution, as a transformer driver or as a laser diode driver. Operation on ±15V power supplies allows for large signal swings and provides greater dynamic range and signal-to- noise ratio. The LM7372 offers high SFDR and low THD, ideal for ADC/DAC systems. In addition, the LM7372 is specified for ±5V operation for portable applications. The LM7372 is built on National's Advance VIP® III (Vertically integrated PNP) complementary bipolar process.
The LM7372 is a high‑speed dual voltage‑feedback amplifier that can be used in traditional voltage‑feedback configurations. It offers a very high slew rate, wide gain‑bandwidth product, and high output current, making it suitable for video distribution, transformer drivers, laser‑diode drivers, and high‑speed signal‑processing applications such as xDSL and pulse amplifiers.
Key electrical characteristics include a slew rate of 3000 V/µs, gain‑bandwidth product of 120 MHz, output current up to 150 mA, and low supply current of 13 mA for both amplifiers. The device is available in 16‑Pin SOIC and 8‑Pin PSOP packages, with detailed absolute‑maximum and operating ratings provided for safe design.
| Slew Rate | 3000 V/µs |
|---|---|
| Gain‑Bandwidth Product | 120 MHz |
| Maximum Output Current | 150 mA |
| Supply Current (both amplifiers) | 13 mA |
| Input Offset Voltage | 2–8 mV |
| CMRR (Common‑Mode Rejection Ratio) | 70–93 dB |
| Supply Voltage Range | ±15 V (up to 36 V) |
The LM7372 can source or sink up to 150 mA of output current.
The device offers a very high slew rate of 3000 V/µs.
The LM7372 has a gain‑bandwidth product of 120 MHz.
Both amplifiers together draw about 13 mA of supply current.
