DS90C385/DS90C365 is a LVDS transmitter for Flat Panel Display (FPD) Link. It supports maximum 85MHz, and can convert 28-bit LVCMOS/LVTTL data to 4 LVDS data streams. It supports rising edge and falling edge strobe, and uses 64-ball 0.8mm pitch FBGA package, which can reduce 44% PCB area compared with TSSOP package.

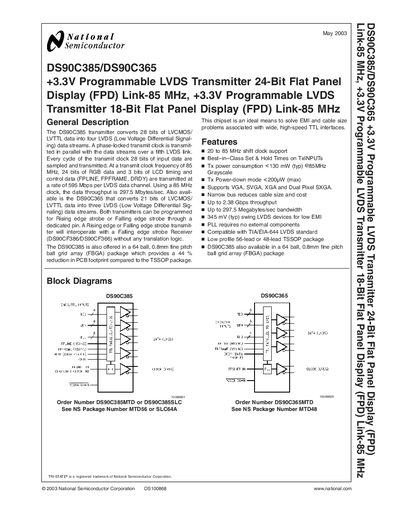

The DS90C385 and DS90C365 are 3.3 V programmable LVDS transmitters designed for flat‑panel display links. They convert parallel LVCMOS/LVTTL data into LVDS streams and include a phase‑locked transmit clock. The devices support VGA, SVGA, XGA and Dual‑Pixel SXGA resolutions while reducing cable size and EMI.
This document contains the general description, features, absolute maximum ratings, detailed electrical characteristics, timing diagrams, package dimensions, and ordering information. It also includes a life‑support policy and customer support contacts for National Semiconductor.
| Tx Power Consumption | <130 mW (typ) @85 MHz |
|---|---|
| Data Throughput | 297.5 Mbytes/sec |
| Tx Power‑down Mode Current | <200 µW (max) |
The DS90C385 can achieve a data throughput of 297.5 Mbytes per second.
Typical power consumption is less than 130 mW at 85 MHz.
